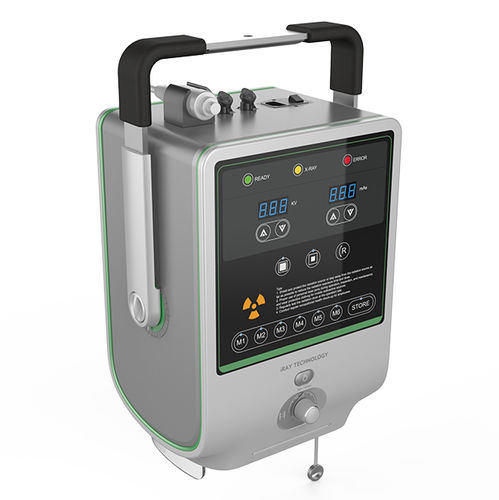

Digital X-ray system Canis 5A

for multipurpose radiographyportable

With a compact size, light weight, and high power density, it is ideally suited for a variety of portable X-ray applications. Features Compact and lightweight design for portable use Easily connect to tablet through Bluetooth and adjust ray-parameter in real time 6 sets of APR exposure parameter shortcut keys to reduce errors and improve efficiency Two kinds of exposure control modes: wireless and wired connection Ultrasonic measurement of SID Technical Parameters Power Supply AC 220V / 110V ± 10% 50 / 60 Hz kV 40-125 mAs 1-100 mA 10-100 ms 1-2000 SID measurement Ultrasonic Light Source On Time (sec) 30 Communication RS232/Bluetooth Exposure Wired/Wireless Weight (kg) 16 Tube Focal Spot Size (mm) 0.6 / 1.8 Target Angle 15° Small Focal Spot Power (kW) 1.27 Large Focal Spot Power (kW) 5.3 Inherent Filtration (mm Al @ 75 kV) Min.0.65 Anode Heat Storage (kJ) 30
