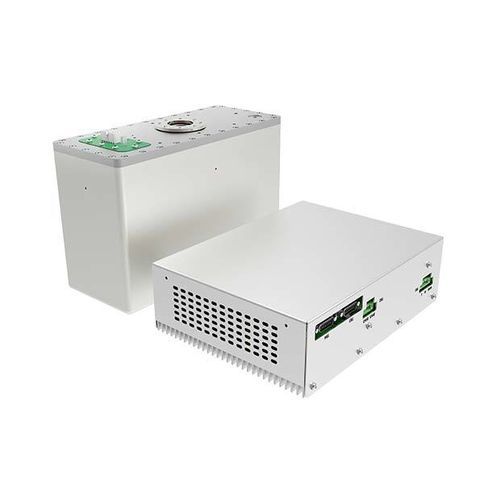

Multipurpose radiography X-ray generator Gemini 3

floor-mountedwith power supply

Overview
Gemini 3 is an integrated X‑ray source subsystem designed primarily for surgical C‑arm systems. It can also be configured for veterinary imaging and security inspection. The tube head envelope is customizable and the unit supports flexible operating modes.

Key features

• Compact integrated unit with a fixed‑anode X‑ray tube
• Oil‑tank enclosure combining tube and high‑voltage components
• High‑frequency inverter power electronics
• Supports pulsed and continuous operating modes
• RS232 and CAN serial communication interfaces
• Windows‑based service GUI for diagnostics and configuration

Applications

• Surgical C‑arm imaging systems
• Veterinary diagnostic imaging
• Explosive detection and security inspection

Technical specifications

• Model: Gemini 3
• Rated power: 3.5 kW (integrated X‑ray source)
• Tube type: Fixed‑anode X‑ray tube
• Cooling/enclosure: Oil‑tank enclosure integrating tube and high‑voltage components
• Power electronics: High‑frequency inverter
• Operating modes: Pulsed and continuous
• Communication: RS232 and CAN serial interfaces
• Service software: Windows‑based service GUI tool
