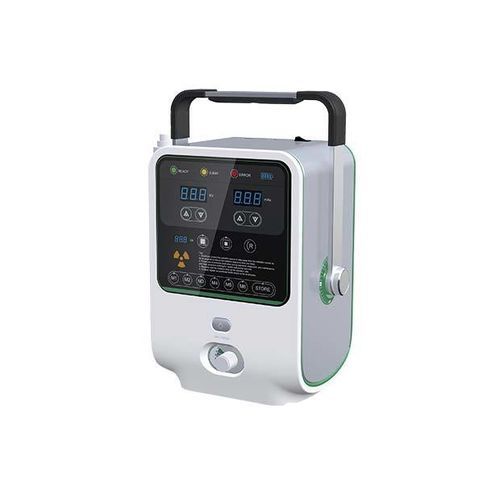

Digital veterinary X-ray system Canis 2

portable

Overview
Canis 2 is a portable X-ray system designed for equine use. Compact and lightweight with a built-in high-capacity lithium battery and a 1.6 kW X‑ray power unit, it provides the power density required for outdoor and mobile radiographic examinations.

Key features

• Weight: 9.7 kg for easy field handling
• Built-in high-capacity lithium battery providing more than 200 exposures per full charge
• Bluetooth connection to tablet for real-time parameter adjustment and image workflow integration
• Six APR (anatomical program) shortcut keys to reduce setup time and operator error
• Two exposure control modes: wireless remote and wired trigger
• Integrated ultrasonic measurement system for accurate exposure calculation

Applications

• Field and stable radiography for horses: limbs, hooves, joints and dental imaging
• Mobile veterinary practices, equine clinics and on-site emergency diagnostics
• Outdoor examinations where portability and battery operation are required

Technical specifications

• Product type: Portable equine X-ray system
• Model: Canis 2
• X‑ray power unit: 1.6 kW
• Weight: 9.7 kg
• Battery: High-capacity lithium battery (>200 exposures per charge)
• Connectivity: Bluetooth to tablet; supports wired connection
• Exposure control: Wireless and wired modes
• APR: 6 stored anatomical program shortcuts
• Measurement: Ultrasonic measurement system
• Design: Optimized for outdoor/mobile equine radiography

Accessories & service

• Optional accessories: protective transport case, wireless trigger, tablet mount and power adapters
• Available service options: calibration, maintenance contracts and spare battery supply
