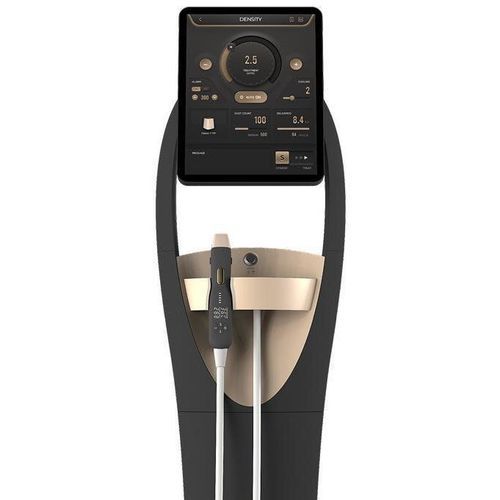

RF body contouring unit Density

RF skin rejuvenation unittrolley-mounted

Product overview
DENSITY Noir transmits monopolar and bipolar high-frequency (RF) energy into dermal tissues with uniform energy delivery and integrated cryogen cooling to protect the epidermis and increase patient comfort.

Principles

• Monopolar - Bipolar: two RF delivery modes for deep and superficial heating
• 400W maximum output: high-power, high-frequency operation
• 5-step adjustable cryogen cooling
• Realtime impedance feedback for safe energy delivery
• Non-invasive procedure with simple operation workflow

Why DENSITY

• Patented Sequential Heating Technology
  • Proprietary algorithm emits monopolar and bipolar RF sequentially in one shot
  • Single-session protocol with minimal downtime
  • Immediate visible improvement and sustained results
• SAC (Smart Air Cooling) features
  • 5-level cooling adjustment with multi-stage and 9-step pulse control
  • Adjustable cooling enables volumetric heating while maintaining patient comfort
• Realtime Impedance Calibration (RIC)
  • Continuous impedance monitoring ensures customized, uniform RF delivery for optimal safety and efficacy

Patented Sequential Heating Technology
DENSITY Noir sequentially emits monopolar then bipolar RF to combine deep volumetric heating and superficial tissue heating in a single pulse cycle.

Clinical evidence and results
Sequential monopolar + bipolar RF demonstrates faster visible effects compared with mono-only RF protocols. Adjustable cooling and auto-pulsing modes streamline treatment and improve patient tolerability.

Skin control examples

• Young Skin (Control): high collagen activity and dense tissue structure
• Aging Skin (Control): lax tissue with degenerative appearance
• Best result example: Aging / Mono × Bi
• Aging / Mono × Mono
• Aging / Bi × Bi
• Aging / Bi × Mono

Smooth and Adjustable Cooling (5 Levels)

• Gas-spray cryogen cooling adjustable in five levels
• Epidermal protection using gas-spray cooling
• Real-time skin temperature monitoring
• Allows delivery of high-energy RF pulses while maintaining surface protection

Handpiece and tips

• Pulse switch: 3 options without time-lock
• Handpiece control: Standby / Treat, energy adjustment
• Treatment tip: manual mode available
• LED display: real-time skin temperature, pulse count, pulsing progress
• ALPHA Tip: 600 shots, 2 × 2 cm = 4 cm²
• Eye Tip: 600 shots, 0.5 × 0.5 cm = 0.25 cm²
• Face Tip: 1,000 shots, 2 × 2 cm = 4 cm²
• Body Tip: 600 shots, 5 × 3.2 cm = 16 cm²

FAQ

• What are the expected effects after the DENSITY procedure? DENSITY Noir delivers combined deep and superficial RF to improve skin appearance and firmness.
• How much pain comes with the DENSITY procedure? Discomfort is minimized by adaptive cryogen cooling that adjusts to skin temperature after each shot.
• How many shots are needed for effectiveness? Number of shots depends on treatment area and skin condition; professional assessment determines the appropriate protocol.

Certifications and patents
DENSITY is approved by US FDA and Korea MFDS. Patent No. KR 10-2640900. Ref: Nam-Kyoung Rho, et al. (2022). "Combined Treatment of Monopolar and Bipolar RF," Int J Mol Sci, vol. 23, no. 6.

Specifications

• Model Name: DENSITY Noir
• RF Frequency: 6.78 MHz
• Max Watt: 400W
• Dimensions (H × W × L): 373.2 × 521.0 × 624.2 mm
• Weight: 52 kg
• Repetition Rate: 1 Hz - 3 Hz
• Cooling: 5-level cryogen gas
