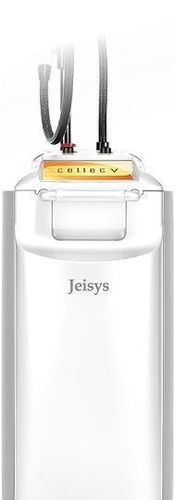

Hair removal IPL system Cellec V

vascular lesion treatmentpigmented lesion treatmentacne treatment

Overview
Intense Pulsed Light (IPL) system designed for targeted treatment of vascular and pigmented lesions. Modular filter set enables wavelength selection according to lesion type and skin phototype.

9 Interchangeable Filters

• Vascular: 500(S), 530(S), 530(D), 550(S)
• Pigmented Lesions: 560, 590, 640
• Acne / Hair Removal: Acne 420(S), Hair Removal 700

Upgraded Cooling System

• Power Cooling: 0°C ~ 5°C
• Safe and comfortable: continuous skin temperature control between 0°C and 5°C during the procedure to reduce risk of thermal side effects.
• Enhanced energy delivery: cooling enables higher energy use with reduced pain and lower probability of adverse events.
• Cooling system can be enabled or disabled according to patient condition.

Vascular Treatment Specialized Filters (tables)
Table 1:
500(S) — 530(S)
500 - 600 nm — 530 - 600 nm
Skin type I-II — Skin type I-II
Vascular / Pigmented Lesions: Facial telangiectasia, Small vessels, Erythema, Lentigo — Vascular: Facial telangiectasia, Lentigo

Table 2:
530(D) — 550(S)
530 - 650 nm, 900 nm ~ — 550 - 650 nm
All skin types — Skin type III-V
Vascular: All sizes of vessels, Rosacea, Erythema — Vascular / Pigmented Lesions: Facial telangiectasia, Broken vascular

The Wavelength Comparison — Graph of Vascular Filters

• Specialized dual filters: combine short wavelengths with high oxy-/deoxyhemoglobin absorption and longer wavelengths capable of vascular thermal effect.
• Precise selection: choose filters based on skin phototype and target vessel depth for safer, more effective vascular treatment.

Technical specifications

• Filters: 420(S) / 500(S) / 530(S) / 530(D) / 550(S) / 560 / 590 / 640 / 700
• Fluence: 1~60 J/cm²
• Spot Size: 10 mm x 40 mm
• Pulse Duration: 1~60 ms
• Delay Time: 1~60 ms
• Dimensions (mm): 1004 (H) x 428 (W) x 591 (L)
• Weight: 95 kg
