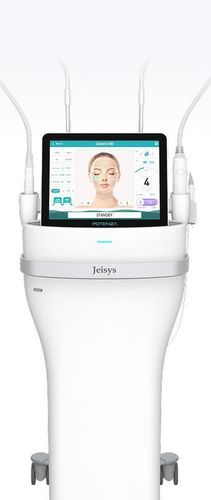

RF body contouring unit POTENZA

RF skin rejuvenation unitRF microneedling unit

Overview
POTENZA delivers non‑invasive and invasive high‑frequency (RF) treatments for lifting, tightening, rejuvenation, wrinkle reduction, pigmentation and pore improvement. The system can automatically select the appropriate mode for individual skin types and provides controlled RF energy delivery to targeted skin layers.

Principles

• Non‑invasive RF: electrode‑type tip contacts the skin surface to deliver RF energy evenly to superficial layers.
• Invasive RF: micro‑needles penetrate the dermis to deliver RF energy into deeper layers and create localized coagulation zones.

Non-invasive High-frequency — Key points

• Surface‑contact treatment without skin penetration.
• Monopolar and bipolar application available (DIAMOND tips).
• Different tips enable selectable penetration depth and treatment effects.

Invasive High-frequency — Key points

• Micro‑needle penetration transmits RF directly into dermal layers.
• Insulated and non‑insulated needle options available.
• RF transmitted through needles creates controlled coagulation zones for dermal remodeling.

Non-invasive Programs / Tips

• SFA TIP: 192 electrodes contact the skin to deliver RF evenly to superficial layers.
• DIAMOND TIP: Delivers both monopolar and bipolar RF to deep and superficial layers for lifting and tightening.
• DDR TIP: Even RF application via gentle rubbing for rejuvenation.

Invasive Program — Process Steps

• STEP 01 — Contact with the skin
• STEP 02 — Generate high‑frequency energy
• STEP 03 — Create a coagulation zone

Select Penetration Depth and RF Type
Choose RF mode (mono‑polar / bi‑polar) and needle depth to target specific skin layers. Available RF modes and depth ranges depend on tip type.

Tips and Indications (summary)
Non‑invasive: DIAMOND — lifting & tightening; DDR — rejuvenation; SFA — wrinkles & texture. Invasive: I‑16 / I‑25 / I‑49 — wrinkles, rejuvenation; S‑16 / S‑25 / S‑49 — melasma, rosacea, pores; N‑16 / N‑25 / N‑49 — melasma, rosacea, rejuvenation, tightening; CP‑16 / CP‑21 / CP‑25 — drug delivery, scars; P1‑08 / A1‑12 / A1‑15 — active acne, syringoma.

Notes
Product features and consumable configurations may vary by device version and region. POTENZA is approved/certified by the Ministry of Food and Drug Safety (manufacturer claim).

Technical specifications

• Applied Energy: 1 MHz / 2 MHz RF
• RF Type: Mono‑polar / Bi‑polar
• Power: max 50 W (combined)
• Needle Depth: 0.5 - 4.0 mm (0.25 mm steps); CP tip: 0.5 - 2.5 mm (0.25 mm steps)
• Non‑invasive Tips: DIAMOND, DDR, SFA
• Invasive Tips: S‑16, S‑25, S‑49; I‑16, I‑25, I‑49; CP‑16, CP‑21, CP‑25; P1‑08; A1‑12, A1‑15
• Number of Pulses: 1 - 5 pulses
• Dimensions (mm): 316 (H) x 503.2 (W) x 365.6 (L) (excluding optional cart)
• Weight: Approx. 12.5 kg
