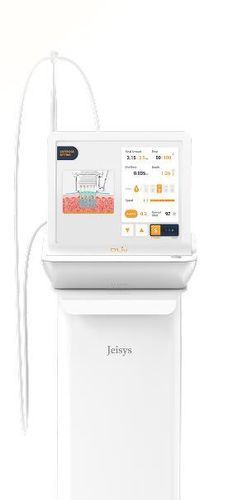

Mesotherapy unit D’Liv
mechanical microneedling unittrolley-mounted

Mesotherapy unit - D’Liv - JEISYS Medical - mechanical microneedling unit / trolley-mounted

Mesotherapy unit - D’Liv - JEISYS Medical - mechanical microneedling unit / trolley-mounted - image - 2

Mesotherapy unit - D’Liv - JEISYS Medical - mechanical microneedling unit / trolley-mounted - image - 3

Mesotherapy unit - D’Liv - JEISYS Medical - mechanical microneedling unit / trolley-mounted - image - 4

Mesotherapy unit - D’Liv - JEISYS Medical - mechanical microneedling unit / trolley-mounted - image - 5

Mesotherapy unit - D’Liv - JEISYS Medical - mechanical microneedling unit / trolley-mounted - image - 6

Mesotherapy unit - D’Liv - JEISYS Medical - mechanical microneedling unit / trolley-mounted - image - 7

Add to favorites

Compare this product

Characteristics

Type of system: mechanical microneedling unit, mesotherapy unit
Ergonomics: trolley-mounted

Description

Overview
D’Liv is a medical device using microneedles to enhance absorption of topical solutions and enable controlled delivery into epidermal/dermal channels.

General features

Solution delivery system designed to administer topicals via microneedle-assisted channels
Short procedure time with minimized topical loss
Adjustable delivery settings for dose control and repeatability

Modes

PUMPING mode
- Tip options: 16-pin and 25-pin
- Automatic solution injection function
- Programmable number of shots per application
- Adjustable needle insertion speed
INJECTOR mode
- 9-pin option; needle thickness: 32G and 34G
- Automatic solution injection function
- Programmable number of shots per application
- Adjustable needle insertion speed

PUMPING — Procedure steps

STEP 01: Needle insertion — Vacuum draws the skin against the microneedles
STEP 02: Microneedles penetrate to the targeted depth
STEP 03: As needles retract, topical solutions are delivered into the created channels

Technical specifications

PUMPING TIP: (1) PUMPING-16 Tip, Working size: Ø 4.8 mm; (2) PUMPING-25 Tip, Working size: 8 x 8 mm; Needle thickness: 0.35 mm; Needle depth: 0.25–2.5 mm
INJECTOR TIP: Working size: 9 x 9 mm; Needle thickness: 32G, 34G; Needle depth: 0.8 mm, 1.0 mm
Dimensions: 483.8 (W) x 462.8 (D) x 1326.6 (H) mm
Weight: 30.9 kg
