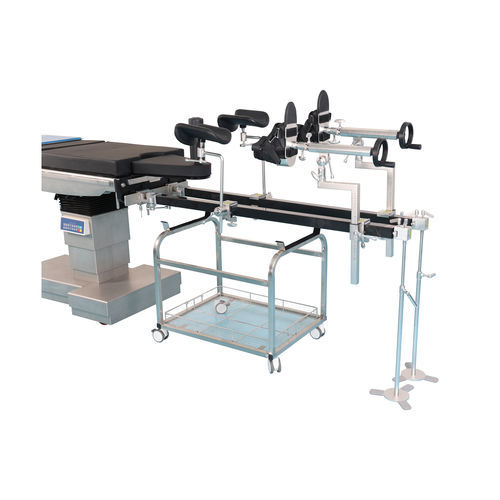

Spine surgery orthopedic extension device Q3 economyknee surgeryhip surgery
Add to favorites
Compare this product
Characteristics
- Applications
- hip surgery, knee surgery, spine surgery
Description
Overview
Key features
Technical specifications
Optional accessories
- Designed for traction, reduction and fixation of lower limbs in orthopedic surgery. Model: Q3 (double-section). Main bracket: carbon fiber (50x50mm square tube); other parts: 304 stainless steel.
Key features
- Double-section frame for extended reach and modular positioning.
- Excellent X‑ray transparency of carbon fiber main bracket; compatible with C‑arm in any position.
- 360° rotation and wide-angle adjustments for flexible operative positioning.
- Precision-cast key components; end-tooth clamping for secure angle locking.
- Requires matching operating table connection size; standard version fits conventional lower-limb traction procedures.
Technical specifications
- Extension rod abduction: ≥180°
- Extension rod length: 1400mm
- Horizontal displacement of traction mechanism: ≥1200mm
- Vertical displacement of traction mechanism: ≥380mm
- Horizontal rotation angle of traction mechanism: 360°
- Vertical rotation angle of traction mechanism: 180°
- Rotation angle of traction shoes: 360°
- Traction stroke: ≥190mm
- Leg support displacement: ≥1200mm
- Lateral decubitus support lift: ≥120mm
- Perineal post length: ≥230mm
- Perineal post outer diameter: ≥80mm
- Traction frame length: 1620mm
- Traction frame width: 515/535mm
Optional accessories
- Traction arch
- Lateral decubitus board/support
- Tibial scaffold
- Transfer pad
- Tibial traction attachment scaffold
