Lumbar traction table 1006

Overview

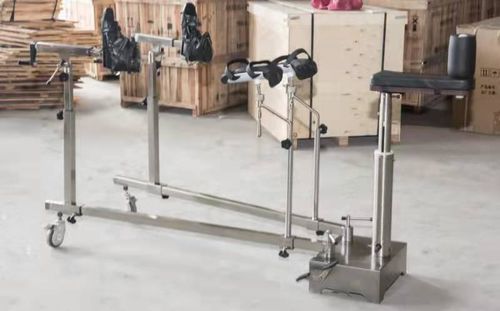

1006 is an orthopaedic traction frame designed for lower-limb traction during surgical procedures. Constructed from 304 stainless steel, the unit attaches to standard operating tables and provides adjustable lift and traction ranges to support controlled patient positioning in orthopaedic interventions.

Technical Data

• Traction Frame Length/width: 1860/530 mm
• Traction Frame Height: ≤860 mm
• Lifting range: ≥320 mm
• Traction range: ≥200 mm
• Foot Plate Traction range: ≥200 mm
• Knee Crutch Lowest Elevation: ≤900 mm
• Knee Crutch Traction range: ≥200 mm
• Traction angle (rotation up & down): 120°
• Horizontal evagination of body frame: ≥180°

Specifications

• Model: 1006
• Application: Orthopaedics traction
• Material: 304 stainless steel
• Compatibility: Universal use with any operating table models
• Traction Frame Length/Width: 1860/530 mm
• Traction Frame Height: ≤860 mm
• Lifting range: ≥320 mm
• Traction range: ≥200 mm
• Foot Plate Traction range: ≥200 mm
• Knee Crutch Lowest Elevation: ≤900 mm
• Knee Crutch Traction range: ≥200 mm
• Traction angle (rotation up & down): 120°
• Horizontal evagination of body frame: ≥180°
