Radiolucent positioning system for spine surgerysurgery
Add to favorites
Compare this product
Characteristics
- Applications
- radiolucent, for spine surgery, surgery
Description
Overview
Variants
Technical specifications
Abdominal support pads
Materials & compatibility

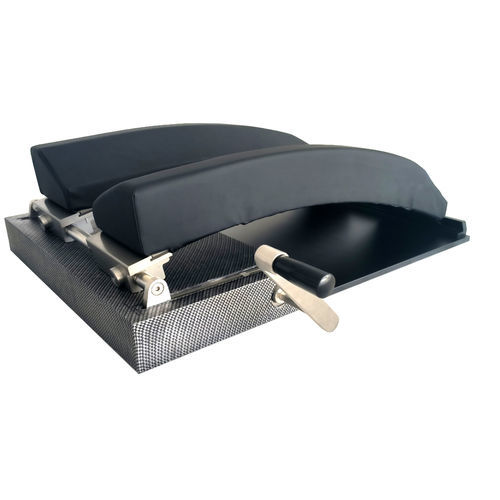

- Bow-shaped spinal surgery frame designed for prone positioning, cervical and thoracolumbar procedures; compatible with C-arm imaging for intraoperative fluoroscopy.
Variants
- Semi-carbon: base plate in imported phenolic resin, carbon-fibre support plate, high-density sponge support cushion; base plate thickness 700×500×10 mm.
- Full-carbon: base plate and support plate in carbon fibre, high-density sponge support cushion; base plate thickness 700×500×6 mm.
Technical specifications
- Base plate nominal size: 700 × 500 mm.
- Arc height adjustment range: 150–260 mm.
- Width adjustment range: 0–195 mm.
- Available variants: Semi-carbon and Full-carbon.
Abdominal support pads
- Combined pad: modular high‑density resilient sponge blocks, waterproof and antistatic PU cover, lower phenolic plate to maintain X‑ray transparency where required.
- Integrated pad: single-piece high‑density resilient sponge with waterproof and antistatic PU cover, compatible with C-arm imaging.
Materials & compatibility
- Mattress: high‑density sponge with waterproof, antistatic PU cover.
- Base plate: carbon fibre or imported phenolic resin board depending on variant.
- Support plate: carbon fibre (full or semi-carbon configurations as specified).
- Adjustment: lifting handle for easy arc sizing; designed for use with intraoperative C-arm fluoroscopy.
