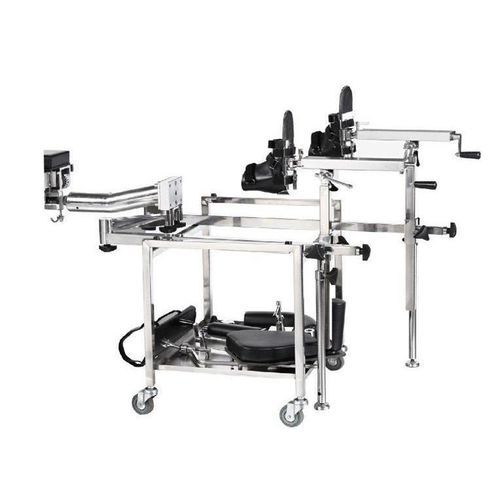

Lumbar and cervical traction unit 1005

Description
1005 is an orthopaedic traction frame designed for intraoperative traction procedures. It is manufactured in 304 stainless steel and can be mounted on various operating table models; specially adapted for HFEOT99C.

Technical Data

• Traction Frame Length/width: 1400/600 mm
• Traction Frame Height: 900 mm
• Lowest height fitting to tabletop: ≤740 mm
• Foot Plate Traction range: ≥200 mm
• Knee Crutch Lowest Elevation: ≤540 mm
• Traction range: ≥200 mm
• Traction angle: rotation (up & down): 120°
• Horizontal evagination of body frame: ≥180°

Specifications

• Usage: orthopaedics traction
• Material: premium 304 stainless steel
• Compatible models: can be used with various operating table models (made specially for HFEOT99C)
• Traction Frame Length/Width: 1400/600 mm
• Traction Frame Height: 900 mm
• Lowest height fitting to tabletop: ≤740 mm
• Foot Plate Traction range: ≥200 mm
• Knee Crutch Lowest Elevation: ≤540 mm
• Traction range (foot/knee): ≥200 mm
• Traction angle (rotation up & down): 120°
• Horizontal evagination of body frame: ≥180°
