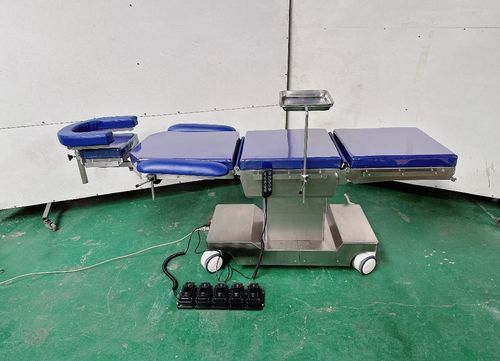

Ophthalmic operating table FY-V03-5electricpneumaticmobile
Add to favorites
Compare this product
Characteristics
- Applications
- ophthalmic
- Operation
- electric, pneumatic
- Features
- adjustable height, mobile
- Components
- with armrest
- Number of sections
- 4-section
- Power source
- 220V / 50Hz, 110V / 60Hz
- Material
- stainless steel
- Total length
223 cm
(87.8 in)- Total width
55 cm
(21.7 in)
Description
Technical Specifications
Dimension: 2230*550mm
Electric Height Adjustment: 540-740mm
Electric Head Board Adjustment: 0-100mm
Electric Back Board adjustment: 0-65°
Electric Forward & Backward adjustment: 0-300mm
Electric Left & Right adjustment: 0-100mm
Air Spring Leg Board adjustment: ±45°
Voltage: 220V/110V
Frequency: 50Hz / 60 Hz
Product Features
Standard Accessories
Packaging & Shipping Data
Packing: 1 piece in a wooden case
Package Measurement: 1770*740*680mm, CBM: 0.89
Gross weight: 220kgs
caractéristiques / spécifications techniques
Dimension: 2230*550mm
Electric Height Adjustment: 540-740mm
Electric Head Board Adjustment: 0-100mm
Electric Back Board adjustment: 0-65°
Electric Forward & Backward adjustment: 0-300mm
Electric Left & Right adjustment: 0-100mm
Air Spring Leg Board adjustment: ±45°
Voltage: 220V/110V
Frequency: 50Hz / 60 Hz
Product Features
- Suitable for ophthalmic examination, diagnosis and surgical procedures.
- Equipped with Jiechang brand motors for smooth, low-noise electric adjustments.
- Constructed from full premium 304 stainless steel for clinical hygiene and corrosion resistance.
- Mobile stainless steel base with castors and central brake for positioning in the operating room.
- All sections fitted to accept the mattress for patient stability.
- Height, back board, head board, longitudinal movement, and lateral movement are motor-driven; leg board adjustment is via air spring.
Standard Accessories
- Mattress: 1pc
- Power line: 1pc
- IV Rod: 1pc
- Body Strap: 1pc
- Arm supports: 2pcs
- Hand controller: 1pc
- Foot Switch controller: 1pc
- Stainless Steel Instrument Tray: 1pc
Packaging & Shipping Data
Packing: 1 piece in a wooden case
Package Measurement: 1770*740*680mm, CBM: 0.89
Gross weight: 220kgs
caractéristiques / spécifications techniques
- Model: FY-V03-5
- Dimension: 2230*550mm
- Height adjustment (electric): 540-740mm
- Head board adjustment (electric): 0-100mm
- Back board adjustment (electric): 0-65°
- Forward/backward adjustment (electric): 0-300mm
- Left/right adjustment (electric): 0-100mm
- Leg board adjustment (air spring): ±45°
- Voltage: 220V/110V
- Frequency: 50/60Hz
