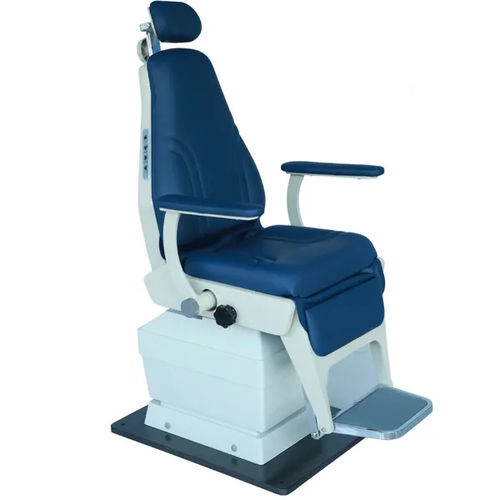

ENT examination chair FY-V03-D7

electricfoot-operatedheight-adjustable

Technical Specifications
Dimension: 820 mm × 630 mm × 1240/1390 mm
Electric height adjustment stroke: 150 mm
Height control: Push-button and foot switch
Left and right handrails: 360° rotation
Seat rotation: 80° left and right respectively
Backrest tilt range: forward 10°, backward 85°
Head frame: adjustable up and down by handle

Product Features

• Electric height adjustment with 150 mm stroke
• Push-button and foot switch controls for timely operation
• Left and right handrails rotate 360° for patient access
• Seat rotates 80° to each side to facilitate procedures
• Backrest tilts 10° forward and 85° backward for positioning
• Head frame adjustable up and down by handle for fine alignment

Standard Accessories
No matched accessories listed

Packaging & Shipping Data
Package measurement: 1340 × 780 × 740 mm, CBM: 0.77
Gross weight: 141 kg
Net weight: 120 kg

Model Details

• Model: FY-V03-D7
• Dimension: 820 mm × 630 mm × 1240/1390 mm
• Electric height adjustment stroke: 150 mm
• Height control: Push-button and foot switch
• Handrails: 360° rotation (left and right)
• Seat rotation: 80° left and right
• Backrest tilt range: forward 10°, backward 85°
• Head frame: adjustable up and down by handle
• Package measurement: 1340 × 780 × 740 mm, CBM: 0.77
• Gross weight: 141 kg
• Net weight: 120 kg
