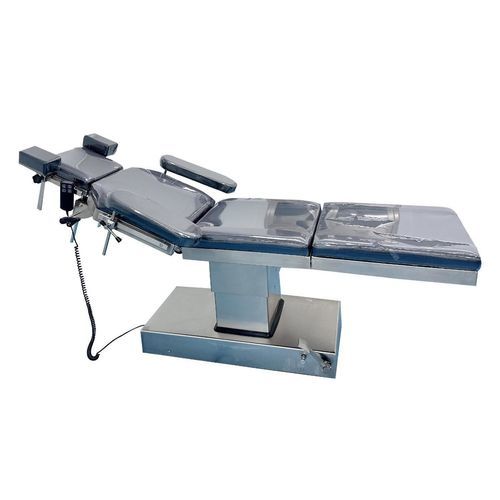

Ophthalmic operating table FY-V03-D1(I)electricadjustable heightreclining
Add to favorites
Compare this product
Characteristics
- Applications
- ophthalmic
- Operation
- electric
- Features
- adjustable height, reclining
- Components
- with legrest
- Number of sections
- 4-section
- Material
- stainless steel
- Total length
200 cm
(78.7 in)- Total width
50 cm
(19.7 in)
Description
Key specifications
Main features
Standard accessories
Applications and notes
- Model: FY-V03-D1(I)
- Overall dimension: 2000 x 500 mm
- Electric height adjustment range: 530 - 730 mm
- Electric back section adjustment: 0 - 75°
- Manual head board adjustment: up 100 mm, down 50 mm
- Table panel frame / column / basement material: #304 stainless steel
- Gross weight: 190 kg
- Net weight: 160 kg
Main features
- Designed for ophthalmology diagnosis and surgical procedures
- Table panel frame, column and base constructed in #304 stainless steel for medical environments
- Guide rails at both ends to mount surgical accessories
- Head board adjusted by hand crank located under the back plate
- Detachable leg board for easier patient access
- Height and back section adjustment via wired hand controller
Standard accessories
- Mattress: 1 set
- Power cord: 1 pc
- Manual controller: 1 pc
- Arm supports for surgeon: 2 pcs
- Arm supports for patient: 2 pcs
Applications and notes
- Intended for ophthalmic operating rooms and clinics
- Ensure electrical supply and grounding per hospital requirements
- Refer to user manual for maintenance and load limits
