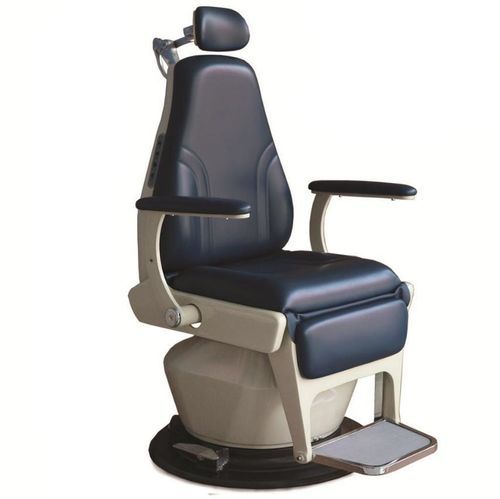

Ophthalmic operating table FY-V03-D6electricadjustable heightreclining
Add to favorites
Compare this product
Characteristics
- Applications
- ophthalmic
- Operation
- electric
- Features
- adjustable height, reclining
- Components
- with headrest
- Total width
63 cm
(24.8 in)- Max supported weight
135 kg
(297.6 lb)
Description
Overview
Technical specifications
Product features
Standard accessories
Packaging & Shipping Data
Notes
- Ophthalmic operating table model FY-V03-D6 designed for eye surgery procedures, offering electric backrest and height adjustments, broad rotation and positioning options for clinical use.
Technical specifications
- Dimension (top): 765 × 635 mm
- Manual rotation angle: 340°
- Electric backrest adjustment: +10° / -85°
- Electric height adjustment: 200 mm (range 530–730 mm)
- Head frame: adjustable up/down and fore/aft via handle
- Load capacity: 135 kg
- Overall dimensions (L × W × H): 820 × 630 × 1240/1390 mm
Product features
- Electric backrest and height adjustment with push-button and foot-switch control for timely operation
- Manual rotation 340° for patient positioning
- Left and right handrails rotate 360° for surgeon access
- Seat rotation: 80° left and right
- Backrest range: forward 10° / backward 85°
- Head frame parts adjustable via handle for precise alignment
Standard accessories
- No matched accessories listed
Packaging & Shipping Data
- Package dimensions: 720 × 720 × 1310 mm (CBM: 0.68)
- Gross weight: 141 kg
- Net weight: 120 kg
Notes
- The technical data shows electric height adjustment as 200 mm (range 530–730 mm); the source features list also displays a 150 mm value. Please verify the exact stroke with the supplier before order.
