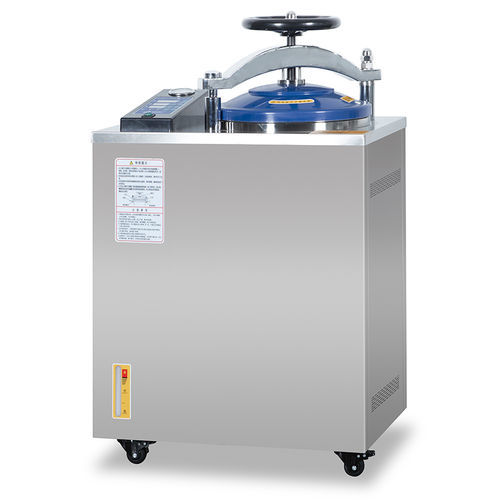

Laboratory sterilizer DGL-X Series

medicalsteamvertical

Product overview
The DGL-X vertical steam sterilizer series is designed for medical and laboratory sterilization of instruments and porous loads, providing steam sterilization with optional drying. Available in 35 L, 50 L, 75 L and 100 L chamber capacities with stainless steel construction and microcomputer control.

Key features

• Hand-wheel opening mechanism with quick-opening structure
• High-grade stainless steel chamber and external casing
• Integrated drying function for fast post-sterilization processing
• Microcomputer automatic control with programmable sterilization parameters
• Safety interlocking door device
• Digital display and touch-button operation
• Standard test interface for biological/physical tests
• Self-expanding door seal for reliable closure
• Automatic protections: over-temperature, over-pressure self-discharge, low-water-level protection, anti-dry-burning
• Includes stainless steel bucket or basket; optional multi-basket configurations
• Buzzer reminder and automatic stop at cycle end
• Automatic cold-air discharge and automatic steam exhaust with internal steam circulation

Technical specifications

• Series: DGL-X — Models: DGL-35X (35 L), DGL-50X (50 L), DGL-75X (75 L), DGL-100X (100 L)
• Power: 3.5 kW (35X, 50X), 4.5 kW (75X, 100X); Voltage: AC 220 V, 50 Hz
• Design pressure / Rated working pressure: 0.25 MPa / 0.22 MPa; Design / Rated temperature: 139℃ / 134℃
• Sterilization temperature range: 116℃–134℃; Sterilization time range: 4–120 min; Drying time range: 0–240 min
• Chamber dimensions (Φ×D): DGL-35X Φ350×400 mm; DGL-50X Φ350×525 mm; DGL-75X Φ400×625 mm; DGL-100X Φ450×650 mm
• Bucket dimensions: DGL-35X Φ330×320 mm; DGL-50X Φ330×460 mm; DGL-75X Φ380×560 mm; DGL-100X Φ420×540 mm
• Optional basket dimensions: DGL-35X Φ320×350 mm; DGL-50X Φ320×240×2 pcs; DGL-75X Φ360×280×2 pcs; DGL-100X Φ410×300×2 pcs
• Outer dimensions (L×W×H): DGL-35X 698×498×940 mm; DGL-50X 630×500×1180 mm; DGL-75X 725×525×1170 mm; DGL-100X 788×588×1255 mm
• Packing size (L×W×H) and Gross/Net weight: DGL-35X 790×610×1130 mm / 125/110 kg; DGL-50X 800×600×1230 mm / 130/112 kg; DGL-75X 840×610×1310 mm / 145/114 kg; DGL-100X 870×650×1380 mm / 156/129 kg

Safety and control

• Microcomputer control with preset and adjustable sterilization programs
• Digital display for temperature, time and program status; touch-button input
• Interlock and multiple automatic protections to prevent unsafe operation
• Standard interfaces for validation and routine testing

Optional accessories

• External printer for cycle reports
• Automatic water supply system
• Additional stainless steel baskets and instrument holders
