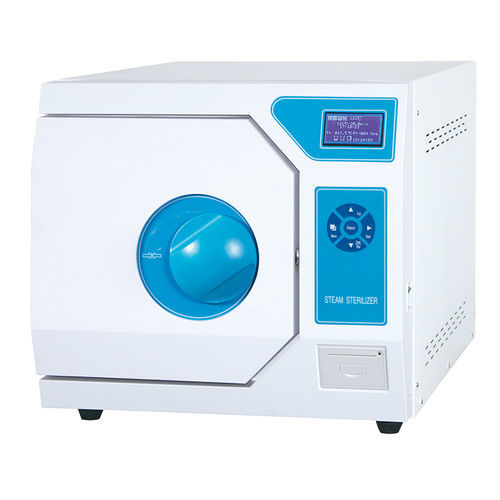

Medical sterilizer DGT-B Series

dentallaboratorysteam

Features

• Quality stainless steel inner tank, sealed cover
• Microcomputer control
• Safety interlocking device
• Automatic water
• With drying function
• With BD test, HELIX test, VACUUM test
• LCD display and touch buttons
• With standard test interface
• European CLASS B standard
• Automatic protection functions: over temperature protection, over pressure protection, low water level protection, anti dry burning, and safety door lock
• Three times pre-vacuum
• Buzzer reminder after sterilization, automatic stop
• Automatic discharge of cold air, automatic steam exhaust after sterilization
• Built-in steam generator to provide saturated steam quickly
• With printer, USB function and U disk

Technical Parameter
Technical parameter — DGT-8B — DGT-12B — DGT-18B — DGT-23B
Volume — 8L — 12L — 18L — 23L
Power — 2kw — 2kw — 2kw — 2kw
Voltage — 110V / 220V, 60Hz / 50Hz — 110V / 220V, 60Hz / 50Hz — 110V / 220V, 60Hz / 50Hz — 110V / 220V, 60Hz / 50Hz
Design pressure — 0.25MPa — 0.25MPa — 0.25MPa — 0.25MPa
Design temperature — 139℃ — 139℃ — 139℃ — 139℃
Rated working pressure — 0.22MPa — 0.22MPa — 0.22MPa — 0.22MPa
Rated working temperature — 134℃ — 134℃ — 134℃ — 134℃
Chamber dimension (Φ×L, mm) — Φ170×320 — Φ200×355 — Φ250×370 — Φ250×452
Outer dimension (L×W×H, mm) — 445×580×400 — 445×580×400 — 480×640×450 — 480×690×450
Packing size (L×W×H, mm) — 650×500×450 — 650×500×450 — 720×560×510 — 760×560×510
Gross / Net weight — 45/42kg — 48/44kg — 57/48kg — 60/53kg

Caractéristiques / spécifications techniques

• Series: DGT-B Series
• Applicable standard: European CLASS B
• Inner tank: quality stainless steel with sealed cover
• Control: microcomputer control with LCD display and touch buttons
• Safety: safety interlocking door, over temperature protection, over pressure protection, low water level protection, anti dry burning, safety door lock
• Vacuum & testing: three times pre-vacuum; supports BD test, HELIX test, VACUUM test; standard test interface
• Functions: automatic water filling, drying function, buzzer reminder after sterilization (automatic stop), automatic cold air discharge and steam exhaust after sterilization
• Steam source: built-in steam generator for rapid saturated steam
• Data output: built-in printer, USB function and support for U disk
• Electrical: 2 kW power; voltage options 110V / 220V, 60Hz / 50Hz
• Design: design pressure 0.25MPa; design temperature 139℃; rated working pressure 0.22MPa; rated working temperature 134℃
• Dimensions and weights by model: DGT-8B — Chamber Φ170×320 mm; Outer 445×580×400 mm; Packing 650×500×450 mm; Gross/Net 45/42 kg; DGT-12B — Chamber Φ200×355 mm; Outer 445×580×400 mm; Packing 650×500×450 mm; Gross/Net 48/44 kg; DGT-18B — Chamber Φ250×370 mm; Outer 480×640×450 mm; Packing 720×560×510 mm; Gross/Net 57/48 kg; DGT-23B — Chamber Φ250×452 mm; Outer 480×690×450 mm; Packing 760×560×510 mm; Gross/Net 60/53 kg
