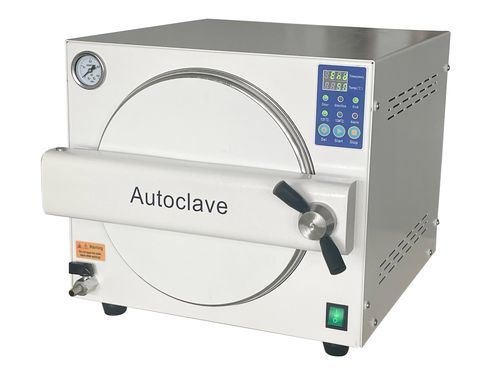

Medical sterilizer DGT-A Series

dentallaboratorysteam

Overview
Compact tabletop steam sterilizer designed for medical, dental and laboratory use. Microcomputer control and built-in steam generator ensure rapid saturated-steam sterilization with selectable 121 ℃ and 134 ℃ cycles.

Features

• Stainless steel inner tank with sealed cover for durable corrosion resistance
• Microcomputer-controlled automatic cycles; selectable 121 ℃ and 134 ℃ programs
• Responsive touch-button operation and clear status indicators
• Standard test interface for Bowie-Dick or vacuum tests
• Complies with European CLASS N standard
• Automatic safety protections: over-temperature, over-pressure, low-water level and dry-burn prevention
• Buzzer alert at cycle end and automatic shut-off
• Automatic cold-air discharge and steam exhaust after sterilization
• Built-in steam generator for fast steam production and uniform sterilization

Technical Specifications

• Model / Series: DGT-A Series (DGT-18A, DGT-23A)
• Available volumes: 18 L (DGT-18A), 23 L (DGT-23A)
• Power: 1.5 kW (DGT-18A), 2 kW (DGT-23A)
• Voltage: 110V / 220V; 60Hz / 50Hz
• Design pressure: 0.25 MPa
• Rated working pressure: 0.22 MPa
• Design temperature: 139 ℃
• Rated working temperature: 134 ℃
• Chamber dimensions (Φ×L): Φ250×370 mm (18 L), Φ250×452 mm (23 L)
• Outer dimensions (L×W×H): 500×400×350 mm (18 L), 600×400×350 mm (23 L)
• Packing size (L×W×H): 540×450×390 mm (18 L), 640×450×390 mm (23 L)
• Gross / Net weight: 26/24 kg (18 L), 29/27 kg (23 L)
• Control: Microcomputer automated cycle control with touch buttons
• Standards: European CLASS N
• Safety features: Over-temperature, over-pressure, low-water level protection and anti-dry-burning
• Additional features: Standard test interface, end-of-cycle buzzer, automatic cold-air discharge and steam exhaust, built-in steam generator
