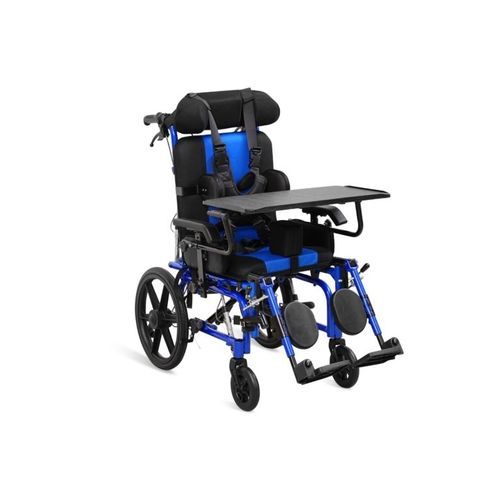

Manual wheelchair SKE691

indoorfoldingheight-adjustable

Product Overview
SKE691 folding wheelchair offers a foldable design with detachable and adjustable components to facilitate transport, transfers and caregiver operation. Frame information in product references includes both aluminum alloy and welded steel pipe forming with surface spray treatment; both are indicated in specifications. Key features include adjustable armrests, liftable and height-adjustable footrests, removable mesh backrest and solid tires.

Highlights

• Ergonomic design for user comfort and support.
• Foldable structure for compact transport and storage.
• Detachable components (armrests, footrests, table) to assist transfers and maintenance.

Wheelchair frame
Product documentation lists aluminum alloy frame in parameters; product text also references welded steel pipe forming with a sprayed surface finish for durability and appearance.

Headrest
Height- and posture-adjustable head support.

Back & seat
Removable breathable mesh backrest fixed with pins to prevent shifting; seat as specified with 350 mm width.

Shoulder holder
Screw-fixed shoulder support, adjustable forward and backward for customized positioning.

Armrests
Height-adjustable and detachable armrests to facilitate transfers and caregiving.

Table board
Detachable meal tray for dining and convenience.

Footrests
Detachable, liftable and height-adjustable footrests to assist transfers and storage (2 pcs).

Foot panel
Removable and foldable high-quality plastic foot panels (2 pcs).

Brake
Handle-operated brakes, designed for simple use and reliable locking.

Other features

• Solid tires for maintenance-free operation.
• Detachable armrests with adjustable height and width.
• Foldable construction with safety features for user security.

Technical parameters
External size (L×W×H): 1040×520×1180 mm ±10 mm
Seat width: 350 mm ±10 mm
Front wheel diameter: 150 mm ±10 mm
Rear wheel diameter: 410 mm ±10 mm
Frame material: listed as aluminum alloy; product text also references welded steel pipe forming with sprayed finish
Design: foldable
Footrest: liftable, height-adjustable, detachable (2 pcs)
Tires: solid
Load capacity: 100 kg

Technical configuration
Shoulder holder: 1 pc
Armrests: 2 pcs
Table board: 1 pc
Footrests: 2 pcs
Foot panels: 2 pcs
Brakes: 2 pcs
Strap: 1 set
Storage bag: 1 pc
Front wheels: 2 pcs
Rear wheels: 2 pcs

Specifications

• Model: SKE691
• External dimensions (L×W×H): 1040×520×1180 mm ±10 mm
• Seat width: 350 mm ±10 mm
• Front wheel diameter: 150 mm ±10 mm
• Rear wheel diameter: 410 mm ±10 mm
• Frame: aluminum alloy (parameters) / welded steel pipe with sprayed finish (product text)
• Design: foldable
• Load capacity: 100 kg
