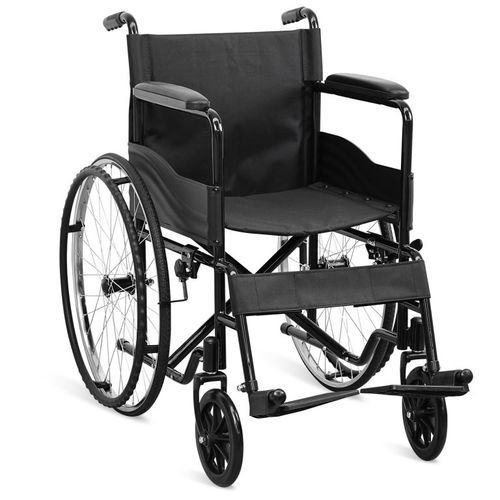

Manual wheelchair SKE030

indoorfoldingwith legrest

Product Overview
The SKE030 manual wheelchair features a foldable steel frame with double cross-bar reinforcement, solid tires, PU armrests and a hand brake system. It is designed for hospitals, rehabilitation centers and nursing homes to support daily patient mobility.

Highlights

• Design: Ergonomic, foldable for transport and storage.
• Frame / Finish: Steel frame with double cross bar; 11-step epoxy coating; ASTM-tested antibacterial paint; paint thickness 0.12 mm; gloss 60°; impact resistance up to 50 kg.
• Cushion: High-strength fabric cushion, durable and comfortable.
• Leg rest: Leather leg rest, soft and durable.
• Armrest: Fixed PU armrests, easy to clean.
• Handle: Wavy handle for improved grip.
• Foot panel: Lightweight aluminium foot panel, removable and foldable.
• Brake: Hand-operated brake, easy to use and reliable.
• Wheels: 8-inch PVC front wheels for manoeuvrability; 24-inch rear wheels suitable for varied pavements.
• Tires: Solid (non-pneumatic) tires.
• Load capacity: 100 kg.

Use Cases

• Hospitals
• Rehabilitation centers
• Nursing homes
• Daily patient mobility support

Technical specifications

• Seat size (L × W × H): 1000 × 680 × 800 mm ±10 mm
• Seat width: 460 mm ±10 mm
• Front wheel diameter: 200 mm ±10 mm
• Rear wheel diameter: 580 mm ±10 mm
• Frame: Steel frame with double cross bar
• Design: Foldable
• Footrest: Fixed (removable / foldable foot panel)
• Tires: Solid tires
• Armrest: Fixed PU armrest
• Loading capacity: 100 kg
