Manual wheelchair SKE697

bariatricindoorfolding

Product overview

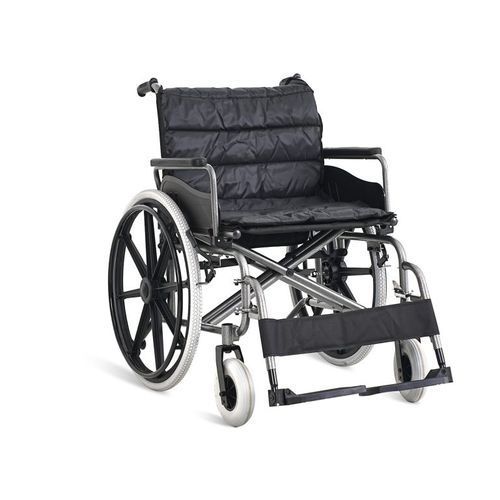

The SKE697 widened wheelchair is designed for bariatric users and institutional use in hospitals, rehabilitation centers and long-term care facilities. Key features include a 560 mm extra-wide seat, welded steel frame, foldable structure, flip-up/detachable armrests, adjustable/removable foot support and a listed load capacity of 150 kg.

Design
Ergonomic structure with an expanded seating platform to improve comfort and support for obese patients. Foldable frame for storage and transport.

Seat cushion

• Fabric cover in Oxford nylon.
• Canvas interlayer >300D in central zone for reinforcement.
• Seam edges finished firmly and neatly without wrinkles or damage.
• Double-layer seat cushion with antibacterial properties.

Wheelchair frame
Welded steel tube construction. Detachable armrests and foot supports. Surface treated with spray finish for durability and corrosion resistance. Product text mentions a load-bearing value of 125 kg in one section; the product parameters table specifies a load capacity of 150 kg.

Armrest
Flip-up (upturning) armrest to facilitate lateral transfers and patient handling.

Front wheel
200 mm (8 in) diameter front wheels with plastic hubs and high-quality solid tires for puncture-free performance.

Rear wheel
Rear wheels described variably: product text refers to a plastic inflatable wheel with hand rim and a 620 mm (24 in) diameter; product table lists rear wheel diameter as 580 mm ± 10 mm. Verify required configuration with supplier.

Foot support
Removable foot supports with adjustable pedal height to accommodate different leg lengths and facilitate transfers.

Folding design & portability
Foldable structure reduces stored footprint. Lightweight when folded for transport and storage in clinical settings.

Brake system
Steel parking brake providing secure and reliable immobilization when parked.

Storage
Integrated storage bag designed to hold personal items and small medical accessories.

Intended use
Intended for bariatric patients and institutional use in hospitals, rehabilitation centers and long-term care facilities.

Technical specifications

• Overall size (L × W × H): 1100 × 705 × 930 mm ± 10 mm
• Seat width: 560 mm ± 10 mm
• Front wheel diameter: 200 mm ± 10 mm
• Rear wheel diameter (table): 580 mm ± 10 mm (note: product text also references 620 mm / 24 in)
• Steel frame
• Foldable design
• Detachable footrest
• Solid tires (front)
• Detachable, flip-up armrest
• Load capacity: 150 kg (product text elsewhere cites 125 kg)
