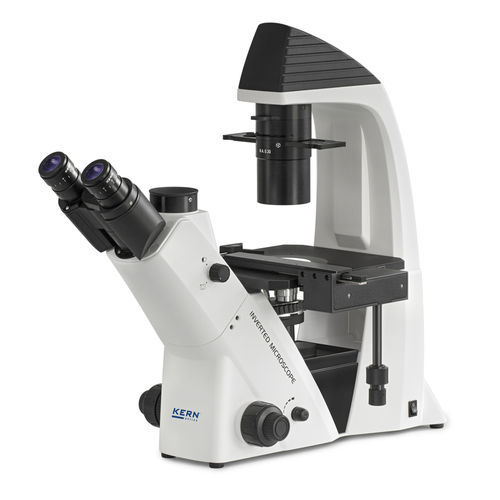

Biology microscope OCM 161

laboratoryfor researchfor cell culture monitoring

Product overview

• The OCM 161 inverted microscope is designed for observation and analysis of cell and tissue cultures, featuring an ergonomic, stable construction and a large working distance suited to culture vessels.
• Transmitted-light illumination: 30 W halogen lamp with stepless intensity control for bright-field observation.
• Abbe condenser N.A. 0.3 with aperture diaphragm and 72 mm working distance for bright field, phase contrast and fluorescence applications.
• Standard trinocular tube with camera port available via adapter.
• Mechanical stage with Ø 110 mm specimen holder; brackets for petri dishes included or available as accessories.
• Optional accessories: additional eyepieces, objectives (including phase contrast), specimen holders, C-mount camera adapters and fluorescence units.
• Delivery includes dust cover and user manual.

Notes

• A C-mount adapter is required to connect a camera (see accessories).

Applications

• Research and cultivation of cell and tissue cultures in laboratories.
• Observation of samples in culture flasks, petri dishes and microtiter plates; translucent, thin or low-contrast specimens (e.g. living mammalian cells, tissues, microorganisms), immunofluorescence, FISH, DAPI staining.

Technical data (excerpt)
Optical system: Infinity
Tube type: Trinocular
Ocular magnifications: 10× (22 mm field)
Standard objectives: 10×, 20×, 40×, PH 20×
Lens quality: Infinity Plan
Nosepiece screw-in locations: 5
Illumination (transmitted): 30 W halogen, stepless
Condenser: Abbe N.A. 0.3, fixed, working distance 72 mm
Focusing: coaxial coarse and fine drive; fine drive minimum 0.002 mm
Mechanical stage: Ø 110 mm specimen holder
Dimensions (W×D×H): 660 × 600 × 335 mm
GTIN/EAN: 4045761489738

Technical specifications

• Optical system: Infinity corrected
• Tube: Trinocular (camera port via C-mount adapter)
• Eyepieces: 10×, 22 mm field
• Included objectives: 10×, 20×, 40×, PH 20× (Infinity Plan)
• 5-position screw-in nosepiece
• Transmitted-light illumination: 30 W halogen, infinitely adjustable
• Abbe condenser N.A. 0.3 with aperture diaphragm, fixed mount, WD 72 mm
• Coaxial coarse and fine focusing; fine drive min. 0.002 mm
• Mechanical stage with Ø 110 mm specimen holder; petri-dish brackets included/available
• Includes dust cover and user instructions
