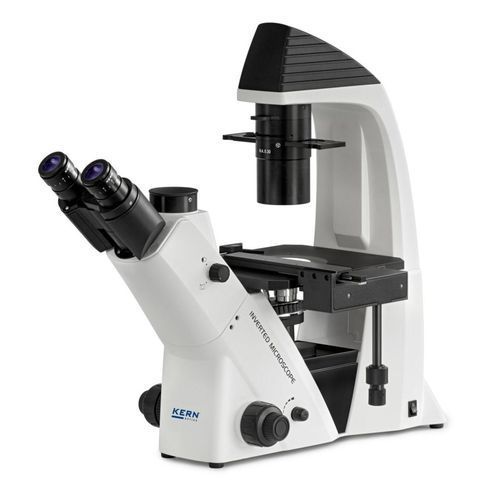

Optical microscope OCM 162

laboratoryfor researchfor cell culture monitoring

Description

• The OCM 162 inverted microscope is intended for observation and analysis of cell and tissue cultures in laboratory environments; it features an ergonomic, stable frame and a large condenser working distance suited to culture vessels.
• Trinocular tube fitted as standard to allow binocular observation and camera connection via a C-mount adapter.
• 5 W LED transmitted illumination with adjustable intensity for bright-field imaging.
• Abbe condenser N.A. 0.3 with aperture diaphragm and 72 mm working distance optimised for culture flasks, dishes and microplates; compatible with bright-field, phase contrast and fluorescence workflows.
• Mechanical stage with specimen holder ∅110 mm; additional brackets for petri dishes are included or available as accessories.
• Standard objectives: 10×, 20×, 40× and PH 20×; infinity plan optics and 5-position screw-in nosepiece.

Note

• A C-mount adapter is required to connect a camera (adapter sold separately).

Applications

• Primary applications: research, maintenance and propagation of cell and tissue cultures in laboratory settings.
• Typical samples: specimens in culture vessels (flasks, petri dishes, microplates); translucent, thin or low-contrast samples such as live mammalian cells, tissues or microorganisms; immunofluorescence, FISH, DAPI staining.

Technical data
Optical system: Infinity
Tube type: Trinocular
Eyepiece magnification: 10×
Eyepiece field number: 22 mm
Standard objectives: 10×, 20×, 40×, PH 20×
Objective quality: Infinity Plan
Nosepiece positions: 5 screw-in locations
Illumination (transmitted): 5 W LED
Condenser: Abbe N.A. 0.3, aperture diaphragm, fixed; working distance 72 mm
Focusing mechanism: coaxial coarse and fine drive; fine drive minimum 0.002 mm
Stage: Mechanical stage with specimen holder ∅110 mm; brackets for dishes included or available
Dimensions (W×D×H): 660×600×335 mm
GTIN/EAN: 4045761489745

Specifications

• Optical system: Infinity
• Tube: Trinocular
• Eyepieces: 10×, field 22 mm
• Objectives included: 10×, 20×, 40×, PH 20×
• Nosepiece: 5 positions (screw-in)
• Illumination: transmitted LED 5 W
• Condenser: Abbe N.A. 0.3, fixed, aperture diaphragm
• Working distance (condenser): 72 mm
• Stage: Mechanical, specimen holder Ø110 mm
• Focusing: coaxial coarse/fine, fine pitch 0.002 mm
• Dimensions: 660 × 600 × 335 mm
• GTIN/EAN: 4045761489745
