Optical microscope OCM 166

laboratorymedicalinverted

Overview

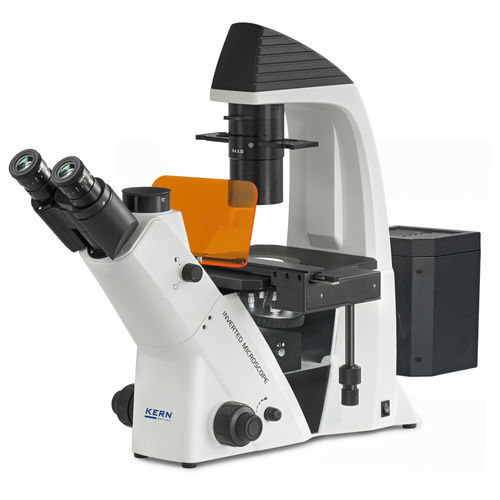

The OCM 166 is an inverted fluorescence microscope designed for laboratory and medical applications. Its ergonomic, robust and very stable construction with a large working distance is particularly suitable for monitoring and analyzing cell and tissue cultures.

Key features

• Infinitely adjustable 30 W halogen transmitted-light illumination for bright-field observations.
• Optional Osram 100 W HBO epi-fluorescence unit for fluorescence excitation (UV, Violet, Blue, Green).
• Abbe condenser NA 0.3 with aperture diaphragm and large working distance (72 mm) for bright-field, phase contrast and fluorescence.
• Trinocular tube as standard for binocular observation and camera connection (C-mount adapter required).
• Mechanical stage with specimen holder (Ø 110 mm); petri-dish brackets included or available as accessories.
• Coaxial coarse and fine focusing; fine drive minimum 0.002 mm.
• Various accessories available: eyepieces, objectives (Infinity Plan), phase contrast units, C-mount adapter for camera, filters.
• Delivery includes dust cover and user instructions.

Technical data
Optical system: Infinity
Tube type: Trinocular
Ocular magnifications: 10× (visual field 22 mm)
Standard objectives: 10×, 20×, 40×, PH 20×
Lens quality: Infinity Plan
Nosepiece screw-in locations: 5
Illuminance: Reflected light, Transmitted light
Illumination intensity transmitted light: 30 W (halogen)
Illumination intensity incident light: 100 W (HBO, optional)
Fluorescent unit: Ultraviolet, Violet, Blue, Green (HBO)
Condenser type: Abbe, NA 0.3, fixed, working distance 72 mm
Focusing mechanism: Coaxial coarse and fine drive
Fine drive minimum: 0.002 mm
Dimensions (W×D×H): 782 × 304 × 530 mm
GTIN / EAN: 4045761248656

Applications

• Main fields: research and culture of cell and tissue samples, clinical laboratories, medical research facilities, public health authorities.
• Typical samples: preparations in culture vessels (flasks, petri dishes, microplates); translucent, thin, low-contrast samples such as living mammalian cells, tissues, microorganisms; immunofluorescence, FISH, DAPI staining.

Notes / Accessories
A C-mount adapter is required to connect a camera (available as accessory). Optional accessories: additional eyepieces, objectives, specimen holders, phase contrast units, filters and camera adapters.

Specifications

• Model: OCM 166
• Manufacturer / Brand: KERN
• Optical system: Infinity-corrected
• Tube: Trinocular
• Ocular: 10×, visual field 22 mm
• Objectives (standard): 10×, 20×, 40×, PH 20× (Infinity Plan)
• Nosepiece positions: 5 (screw-in)
• Transmitted-light illumination: 30 W halogen (infinitely adjustable)
• Incident-light (epi) illumination (fluorescence): 100 W HBO (Osram) optional
• Fluorescence filter set / unit: UV, Violet, Blue, Green (HBO)
• Condenser: Abbe, NA 0.3, fixed, aperture diaphragm, working distance 72 mm
• Stage: Mechanical stage with specimen holder Ø 110 mm (petri dish brackets included/optional)
• Focusing: Coaxial coarse and fine; fine drive minimum 0.002 mm
• Dimensions (W×D×H): 782 × 304 × 530 mm
• GTIN / EAN: 4045761248656
