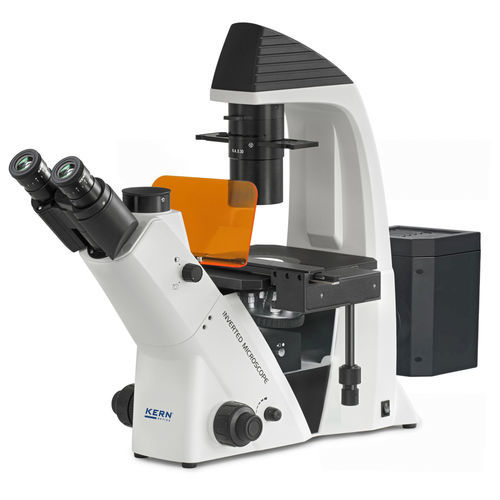

Optical microscope OCM 168

laboratoryfor researchfor biology

Description

• The OCM series combines an ergonomic, stable design with an extended working distance tailored for monitoring and analysis of cell and tissue cultures.
• 5 W LED transmitted‑light illumination provides consistent bright‑field illumination. Optional Osram 5 W LED epi‑fluorescence unit (UV, violet, blue, green) is available for fluorescence imaging and excitation.
• Special Abbe condenser N.A. 0.3 with aperture diaphragm and 72 mm working distance supports bright‑field, phase contrast and fluorescence applications.
• Standard trinocular tube with 10× eyepieces (22 mm field); camera attachment possible via C‑Mount adapter.
• Mechanical stage with Ø110 mm specimen holder; additional petri‑dish brackets for 35/54/65 mm included or available as accessories.
• System expandable with objectives (10×, 20×, 40×, PH 20×), eyepieces, phase contrast units, filters and microscope cameras.

Applications

• Research and cultivation of cell and tissue cultures
• Clinical and medical laboratories
• Hospital laboratories and inpatient facilities
• Public health authorities and research institutes
• Observation of samples in culture vessels (flasks, Petri dishes, microtitre plates), translucent/thin/low‑contrast specimens (e.g. live mammalian cells, tissues, microorganisms), immunofluorescence, FISH, DAPI staining, etc.

Technical data (table)
Optical system: Infinity
Tube type: Trinocular
Ocular magnifications: 10× (field 22 mm)
Standard objectives: 10×, 20×, 40×, PH 20× (Infinity Plan)
Nosepiece screw‑in locations: 5
Illumination (transmitted): 5 W LED
Illumination (incident / epi fluorescence): 5 W LED (UV, Violet, Blue, Green)
Condenser: Abbe N.A. 0.3 with aperture diaphragm, fixed mounting, working distance 72 mm
Focusing mechanism: coaxial coarse and fine drive; fine drive minimum 0.002 mm
Mechanical stage: specimen holder Ø 110 mm; petri dish brackets available (35/54/65 mm)
Dimensions (W×D×H): 782 × 304 × 530 mm
GTIN / EAN: 4045761263536

Accessories (selection)

• C‑Mount camera adapters (OBB‑A1514 1×, OBB‑A1515 0.5×)
• Microscope cameras for fluorescence (e.g. ODC 861 cooled Sony CMOS, USB 3.0)
• Centering eyepiece; eyepieces with scale
• Fluorescence filters (Blue, Green) and neutral density filters
• Holders for culture dishes (35 mm, 54 mm, 65 mm) and Ø110 mm specimen holder
• Phase contrast objectives and PH sliders
• Cleaning sets and protective dust cover

Characteristics / Technical specifications

• Product family: OCM‑1
• Model: OCM 168 (inverted fluorescence biological laboratory microscope)
• Optical system: Infinity‑corrected
• Tube: Trinocular (camera compatible with C‑Mount adapter)
• Eyepieces: 10×, field 22 mm
• Standard objectives: 10×, 20×, 40×, PH 20× (Infinity Plan)
• Nosepiece: 5 screw‑in positions
• Illumination transmitted: 5 W LED; incident / epi fluorescence: 5 W LED (UV, Violet, Blue, Green)
• Condenser: Abbe N.A. 0.3 with aperture diaphragm, fixed, WD 72 mm
• Focusing: coaxial coarse and fine drive; fine drive minimum 0.002 mm
• Mechanical stage: specimen holder Ø 110 mm; petri dish brackets included/optional
• Dimensions (W×D×H): 782 × 304 × 530 mm
• GTIN / EAN: 4045761263536
