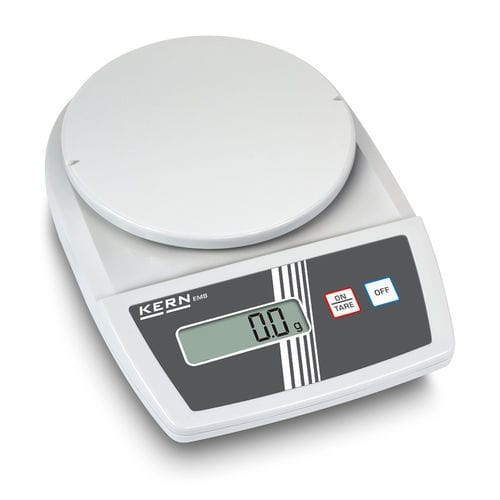

Electronic laboratory balance EMB 500-1

digitalfor teachingfor small animals

Overview

• Entry-level laboratory scale designed for education, training and light laboratory tasks
• Capacity 500 g, readability 0.1 g

Key features

• Simple and convenient 2-key operation
• Tare function for formulation and additive weighing
• Particularly flat housing for easy handling and storage
• Ready for use: batteries included
• Hook for underfloor (suspended) weighing as standard
• Also available as KERN EMB 500-1BE Black Edition

Density determination (optional accessory)
With the optional density accessory set it is possible to determine densities of liquids and solids using buoyancy (Archimedes' principle).

• Liquids: measure buoyancy with a glass plummet of known volume immersed in the liquid.
• Solids: weigh the sample in air (A) and in an auxiliary liquid of known density (B). Calculate density: ρ = A/(A-B) × ρ0 where ρ = density of sample, A = weight in air, B = weight in auxiliary liquid, ρ0 = density of the auxiliary liquid.
• Typical applications: packaged goods control (volume calculation from weight and density), materials analysis, density of porous materials.

Applications

• School balance for teaching and training; educational institutions
• Quality assurance and process control in light industry (e.g. cosmetics)
• Veterinary use and weighing of small animals (clinics, breeders)

Technical data
Weighing capacity [Max] : 500 g
Readability [d] : 0.1 g
Units : g, dwt, ozt, oz
Linearity : ± 0.2 g
Reproducibility : 0.1 g
Stabilization time : 3 s
Adjustment options : Adjusting with external weight
Recommended adjusting weight : 500 g (M1)
Ambient temperature : 5 °C – 35 °C
Dimensions weighing surface (Ø) : 150 mm
Material housing : plastic
Dimension housing (W×D×H) : 170×244×39 mm
Material weighing plate : plastic
Net weight approx. : 0.55 kg
Construction type of the scale : Single-range balance
GTIN/EAN number : 4045761076525

Technical specifications

• Model: EMB 500-1
• Capacity: 500 g
• Readability: 0.1 g
• Selectable units: g, dwt, ozt, oz
• Linearity: ± 0.2 g
• Reproducibility: 0.1 g
• Stabilization time: 3 s
• Adjustment: external weight (recommended 500 g M1)
• Weighing pan diameter: 150 mm
• Housing / pan material: plastic
• Dimensions (W×D×H): 170 × 244 × 39 mm
• Net weight: approx. 0.55 kg
• Type: single-range balance
• EAN / GTIN: 4045761076525
