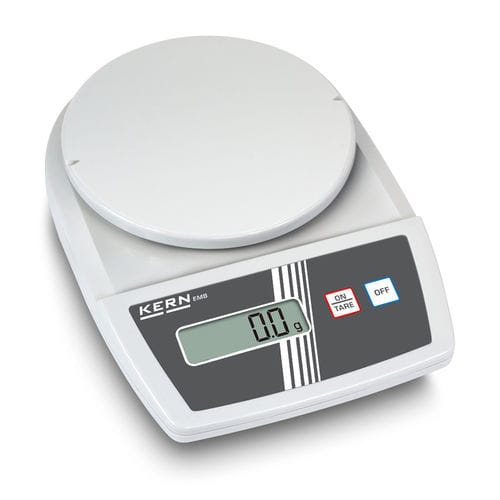

Electronic laboratory balance EMB 2200-0

precisionfor laboratoryfor small animals

Short description
Entry-level laboratory balance EMB 2200-0 offering accurate basic weighing up to 2200 g with 1 g readability.

Features

• Simple and convenient 2-key operation
• Tare function for formulation and addition tasks
• Particularly flat design for compact workspaces
• Ready for use: batteries included
• Standard hook for suspended (underfloor) weighing

Density determination (note)
With an optional auxiliary set the balance can be used for density determination. a) Liquids: measure buoyancy with a glass plummet of known volume immersed in the liquid. b) Solids: weigh the sample in air (A) and then in an auxiliary liquid of known density (B). Solid density (ρ) is calculated: ρ = A/(A - B) × ρ0 (ρ = sample density; A = weight in air; B = weight in auxiliary liquid; ρ0 = density of auxiliary liquid). Applications include packaged goods checks (volume from weight ÷ density), materials analysis and porous material density measurement.

Applications
As a school balance:

• Teaching and training
• Educational institutions
• Cosmetic industry for basic checks
• Quality control tasks

As a small-animal balance:

• Veterinary clinics
• Weighing of small animals
• Small-animal husbandry

Technical Data (summary)
Weighing capacity [Max] : 2200 g
Readability [d] : 1 g
Units : g, dwt, ozt, oz
Linearity : ± 2 g
Reproducibility : 1 g
Stabilization time : 2.5 s
Adjustment options : Adjusting with external weight
Recommended adjusting weight : 2 kg (M1)
Ambient temperature : 5 °C – 35 °C
Dimensions weighing surface (Ø) : 150 mm
Material housing : plastic
Dimension housing (W×D×H) : 170×244×39 mm
Material weighing plate : plastic
Net weight approx. : 0.55 kg
Construction type of the scale : Single-range balance
GTIN/EAN number : 4045761028395

Technical specifications

• Model: EMB 2200-0
• Weighing capacity (Max): 2200 g
• Readability: 1 g
• Display units available: g, dwt, ozt, oz
• Linearity: ± 2 g
• Reproducibility: 1 g
• Stabilization time: 2.5 s
• Adjustment: external weight (recommended 2 kg, M1)
• Operating ambient temperature: 5 °C – 35 °C
• Weighing surface diameter: 150 mm
• Housing material: plastic
• Housing dimensions: 170 × 244 × 39 mm
• Weighing plate material: plastic
• Net weight: approx. 0.55 kg
• Construction type: Single-range balance
• GTIN / EAN: 4045761028395
