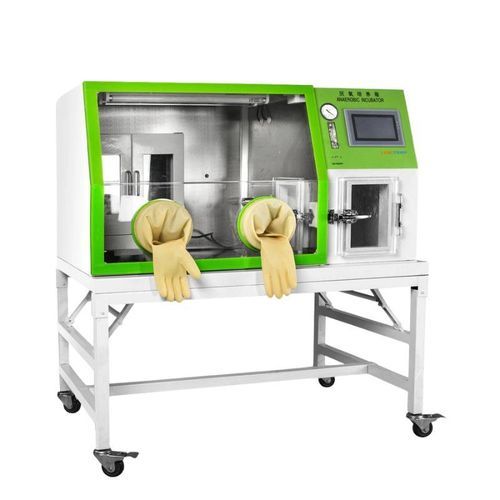

Anaerobic laboratory incubator ANI-02

for microbiologyon castersfloor-standing

Overview
Labotemp Anaerobic Incubator ANI-02 is an anaerobic incubator designed to establish and maintain a controlled oxygen-free environment for cultivation of anaerobic microorganisms. It is suitable for clinical laboratories, pharmaceutical quality control, biotechnology and research facilities. The unit achieves anaerobic conditions in under 5 minutes (sample chamber) and maintains them for over 12 hours without continuous gas supply. Temperature range is RT+3°C to 60°C with ±0.3°C stability and uniform heating for reproducible culture results.

Key Benefits

• Precise control: Microprocessor controller with imported oxygen sensor provides accurate anaerobic monitoring and regulation.
• Contamination protection: UV sterilization, sealed stainless-steel chamber and built-in glove ports reduce contamination risk during handling.
• Traceability and safety: USB data storage, leakage protection and compliance with ISO and CE standards support laboratory procedures and documentation.

Features

• Large color touch display with microprocessor control
• Durable stainless-steel interior chamber
• Transparent front window for sample observation
• Built-in glove ports with comfortable latex gloves
• Deoxidization catalyst for rapid anaerobic conditions
• Double wide door to increase usable workspace
• UV sterilizer to reduce microbial contamination
• Solenoid gas control for precise gas flow management
• Built-in leakage protection
• Stable and uniform temperature performance (±0.3°C stability)

Standard Accessories

• Latex gloves
• USB interface for data storage (records up to 6 months)

Applications

• Cultivation and incubation of anaerobic microorganisms for clinical diagnostics, pharmaceutical testing, food and water testing, and research requiring controlled oxygen-free conditions.

Technical specifications

• Temperature Range: RT+3~60℃
• Anaerobic state (sample chamber): < 5 minutes
• Anaerobic state (operation chamber): < 1 hour
• Anaerobic Maintenance Time: > 12 hour (no supply of mixed gas)
• Temperature Stability: < ±0.3℃
• Temperature Uniformity: < ±1℃
• Display Resolution: 0.1℃
• Timing Range: 1~9999 min
• Power Rating: 600 W
• Power Supply: AC 220V, 50HZ
• Interior Chamber Size (W×D×H): 30 × 19 × 29 cm
• Operation Chamber Size (W×D×H): 82 × 66 × 67 cm
• Exterior Size (W×D×H): 126 × 73 × 138 cm
• Package Size (W×D×H): 139 × 92 × 156 cm
• Net Weight: 240 kg
• Gross Weight: 320 kg
• Display: Large color touch screen, microprocessor control
• Oxygen Monitoring: Imported oxygen sensor for real-time oxygen concentration monitoring
• Data Storage: USB interface, stores up to 6 months of data
• Additional Sterilization Tools: Inoculating rod sterilizer and wax melting disinfection device
