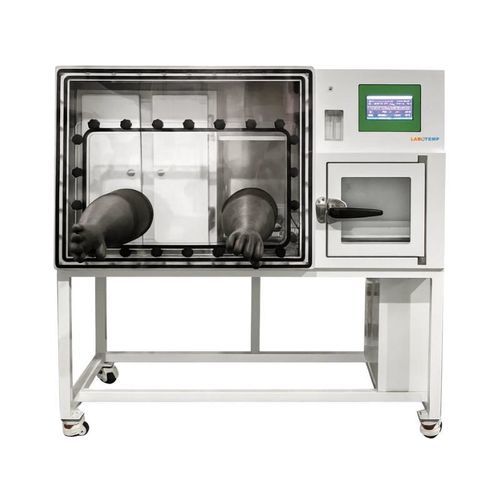

Vacuum laboratory incubator ANI-03

anaerobicfor microbiologyfor the pharmaceutical industry

Overview
Labotemp Anaerobic Incubator ANI-03 provides a controlled oxygen-free environment for cultivation, incubation and handling of strict anaerobic microorganisms. It is designed for clinical, pharmaceutical and research laboratories requiring repeatable anaerobic conditions. The unit integrates a large touch screen with PLC control, an imported oxygen sensor for on-screen oxygen concentration readout, automatic air replacement and safety protections. Operating temperature range is RT+3°C to 60°C. Data logging is available via USB for audit and traceability.

Features

• Vacuum purge cycles for reliable anaerobic atmosphere creation
• Imported oxygen sensor with real-time display on touch screen
• Large touch screen with high-precision PLC controller and sensors
• USB interface for storing up to 6 months of logged data
• Transparent impact-resistant observation window for sample monitoring
• Removable front cover for easy cleaning and instrument access
• UV lamp for chamber sterilization
• Internal light and power socket for in-chamber equipment
• Palladium catalyst for maintaining low-oxygen environment
• Fully automatic gas replacement with positive/negative pressure protection
• Automatic vacuum pumping and pressure maintenance during sampling
• Capacity to transfer up to 40 plates (90 mm) per operation
• Oil-bottle type pressure relief design to minimize air leakage
• Built-in leakage protection system

Standard Accessories

• Oil-free vacuum pump

Applications

• Cultivation and incubation of strict anaerobic microorganisms
• Sample processing and anaerobic workflows in clinical, diagnostic, pharmaceutical, food, environmental and microbiology labs

Technical specifications

• Temperature range: RT+3~60°C
• Time to create anaerobic state in sample chamber: < 10 minutes
• Time to create anaerobic state in operation chamber: < 70 minutes
• Anaerobic environment maintenance time: > 13 hours (without mixed gas supply)
• Temperature stability: < ±3°C
• Temperature uniformity: < ±1°C
• Anaerobic level (operation room): < 5 ppm
• Anaerobic status creation: Automatic
• Air replacement: Automatic
• Interior chamber size (W×D×H): 42 × 30 × 50 cm
• Sample room size (W×D×H): 40 × 33 × 32 cm
• Operation chamber size (W×D×H): 95 × 68 × 75 cm
• Exterior size (W×D×H): 145 × 74 × 142 cm
• Data logging: USB interface storing up to 6 months of data
• Construction: Stainless steel chamber with removable front cover and impact-resistant observation window
