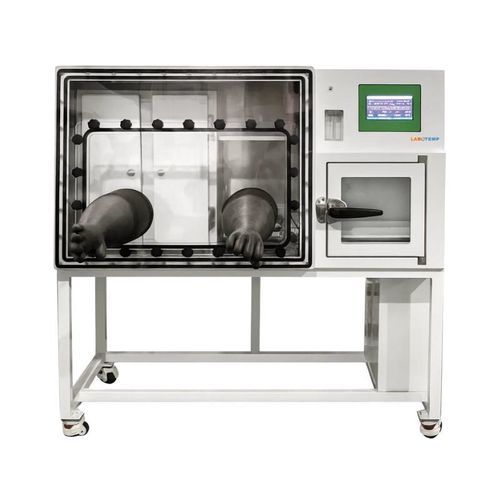

Anaerobic laboratory incubator ANI-04

for microbiologyfor scientific researchfor the pharmaceutical industry

Description
Labotemp Anaerobic Incubator ANI-04 generates and maintains an oxygen-free environment for cultivation and handling of obligate and facultative anaerobes. Designed for clinical microbiology, pharmaceutical QC, food and environmental testing, and academic research, it supports isolation, culture-based assays and tissue/cell work with rapid anaerobic generation. Temperature control RT+3–60°C with high stability (< ±0.3°C) and uniformity (< ±1°C) ensures reproducible growth.

Key operational features

• Built-in UV sterilizer and palladium catalyst for effective oxygen removal and contamination control
• Imported O₂ sensor integrated with PLC touchscreen for precise oxygen and temperature regulation
• Dedicated sample-track transfer system compatible with 40 × 90 mm plates
• Removable front cover for convenient sample loading and easy cleaning
• Leakage protection, oil‑bottle type pressure relief and inoculating-rod sterilizer for safe operation
• USB data-logging for operational traceability up to 6 months

Highlights

• Precise control: fast, repeatable anaerobic conditions via high‑power O₂ control and accurate sensors
• Workflow efficiency: unique track design for batch transfer of up to 40 plates (90 mm) and removable cover for quick handling
• Traceability & sterility: USB logging, UV sterilization and palladium catalyst for contamination control and record keeping

Features

• High-power O₂ control
• Microprocessor controller with large color touchscreen
• Imported oxygen and high-precision temperature sensors
• Automatic gas replacement control
• Oil-bottle type pressure relief to prevent air ingress
• UV sterilizer to reduce microbial contamination
• Stainless steel chamber with transparent impact-resistant window
• Comfortable latex gloves for manipulation
• Built-in deoxidization (palladium) catalyst
• Unique track design for easy sample transfer
• Capacity to transfer 40 plates (90 mm) at once
• Equipped with leakage protection
• Includes inoculating-rod sterilizer and wax-melting device
• USB interface for up to 6 months of data storage

Applications

• Anaerobic microorganism cultivation
  Controlled oxygen-free conditions for strict anaerobes and oxygen-sensitive microorganisms
• Clinical microbiology
  Suitable for anaerobic culture, diagnostic workflows and clinical testing
• Pharmaceutical research & QC
  Supports microbiological quality control and research involving anaerobic organisms
• Food microbiology
  Useful for anaerobic cultivation and sample analysis in food-testing labs
• Environmental testing
  Enables microbiological examination of water and environmental samples requiring oxygen-free conditions
• Research laboratories
  Suitable for microbiology, biotechnology and academic research

Technical specifications

• Temperature range: RT+3–60°C
• Sample chamber anaerobic generation time: < 10 minutes
• Operation chamber anaerobic generation time: < 1.5 hours
• Anaerobic environment maintenance time: > 12 hours (without mixed gas supply)
• Temperature stability: < ±0.3°C
• Temperature uniformity: < ±1°C
• Anaerobic level (operation room): < 1% O₂
• Timer range: 1–9999 min
• Rated power: 800 W
• Power supply: AC 220V, 50Hz
• Interior chamber (W×D×H): 42 × 30 × 50 cm
• Sample room (W×D×H): 40 × 33 × 32 cm
• Operation chamber (W×D×H): 95 × 68 × 75 cm
• Exterior size (W×D×H): 145 × 74 × 142 cm
• Package size: 1490 × 810 × 1550 mm
• Net weight: 278 kg
• Gross weight: 295 kg
