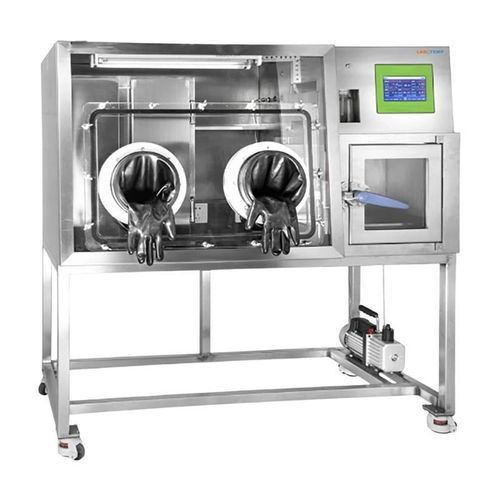

Anaerobic laboratory incubator ANI-05

CO2carbon dioxidefor microbiology

Product Overview
Labotemp Anaerobic Incubator ANI-05 provides integrated anaerobic and micro-oxygen atmosphere control with precise CO₂, temperature and humidity regulation for microbiology, clinical diagnostics, pharmaceutical QC and research laboratories. It can be used as a microbiology, bacteriological, cell culture or tissue culture incubator. Operating range: RT+3°C to 60°C; CO₂: 0–20% (±0.1%); humidity: 50–90% RH for stable incubation conditions.

Key Features

• All-304 stainless steel chamber for corrosion resistance and easy cleaning
• Integrated CO₂, temperature and humidity control
• Operates as anaerobic or micro-oxygen chamber with rapid atmosphere formation
• Automatic humidity control and automatic gas replacement system
• Touch-screen control with real-time oxygen monitoring
• UV sterilization stage to limit contamination
• High-efficiency palladium catalyst to maintain low O₂ levels
• Foot-switch vacuum and nitrogen gassing for hands-free operation
• Capacity to transfer up to 40 plates at once
• Positive/negative pressure protection and oil-bottle pressure relief design
• Liftable front cover for easy cleaning and built-in power socket
• Comfortable latex gloves; bare-hand operating option available

Standard Accessories

• External vacuum pump
• Latex gloves

Optional Accessories

• Single-dish transfer device
• Bare-hand operating system

Applications

• Cultivation, processing and research of strict anaerobic and micro-oxygen microorganisms
• Suitable for clinical, diagnostic, pharmaceutical, food, environmental and microbiology laboratories requiring controlled CO₂, humidity and oxygen-free conditions

Technical specifications

• Temperature range: RT+3~60℃
• Time to create anaerobic state in sample chamber: < 5 minutes
• Time to create anaerobic state in operation chamber: < 1 hour
• Anaerobic environment maintenance time: > 12 hours (no supply of mixed gas)
• Temperature stability: < ±0.3℃
• Temperature uniformity: < ±1℃
• CO₂ range: 0–20%
• CO₂ control accuracy: ±0.1% (imported sensor)
• Humidity control range: 50–90% RH
• Humidity fluctuation: ±3% RH
• Power rating: 1500 W
• Power supply: AC 220V, 50Hz
• Interior chamber size (W×D×H): 42 × 29 × 47.5 cm
• Operation chamber size (W×D×H): 95 × 67 × 75 cm
• Sampling chamber size (W×D×H): 40 × 30 × 32 cm
• Shell material: All 304 stainless steel
