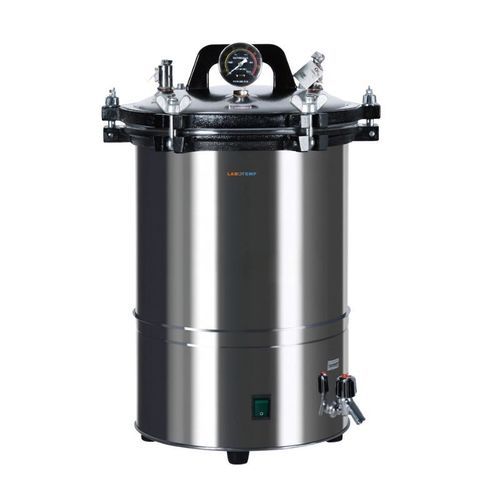

Hospital sterilizer PTA-01

laboratorydentalfor dental offices

Product overview
Labotemp Portable Autoclave PTA-01 is a compact steam sterilizer for moist-heat sterilization of laboratory instruments, glassware, culture media and medical dressings. It uses pressurized saturated steam at controlled temperature and pressure to inactivate bacteria, viruses and spores. The unit is designed for laboratories and clinical environments requiring reliable sterilization in limited spaces.

Key product details
Chamber material: high-quality stainless steel for corrosion resistance. Electric heating provides uniform heat distribution. Rated working pressure: 0.142 MPa; sterilization temperature: 126°C. Fitted with automatic pressure release and a double-scale pressure gauge for precise monitoring and safe operation.

Why choose PTA-01

• Validated moist-heat sterilization at 126°C and 0.142 MPa for effective microbial inactivation.
• Stainless steel chamber for extended service life and chemical resistance.
• Manufactured to ISO and CE standards for clinical and laboratory use.

Features

• Dual-voltage models available (110 V / 220 V; 60 Hz / 50 Hz).
• High-grade stainless steel construction.
• Simple controls for routine sterilization cycles.
• Electric heating for consistent temperature distribution.
• Automatic pressure-release safety valve.
• Double-scale pressure gauge for accurate reading.

Applications

• Moist-heat sterilization of surgical instruments and laboratory glassware.
• Sterilization of culture media, dressings and biomedical waste.
• Suitable for hospitals, diagnostic and research laboratories, dental clinics, pharmaceutical QC, food testing facilities and field or small-batch sterilization tasks.

Technical specifications

• Working temperature: 126°C
• Volume: 24 L (chamber capacity)
• Power: 2.0 kW
• Voltage (models): 110 V / 220 V, 60 Hz / 50 Hz
• Chamber internal dimensions: 280 × 390 (mm)
• Rated working pressure: 0.142 MPa
• Packing size (L × W × H): 410 × 410 × 680 (mm)
• Gross weight: 19 kg
• Net weight: 17.5 kg
• Heating mode: Electric heating
• Pressure gauge: Double-scale indication
• Safety: Automatic pressure release
