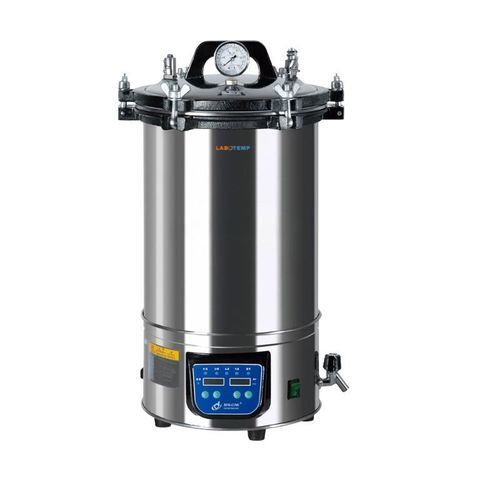

Hospital sterilizer PTA-02

point-of-carelaboratorydental

Product Overview
The Labotemp Portable Autoclave PTA-02 is a stainless-steel steam sterilizer designed for compact, controlled-pressure sterilization. The unit features a full SUS304 chamber, 18 L capacity and 2.0 kW power. Microcomputer control with a digital display enables precise temperature and time programming. Built-in safety includes automatic pressure release, low-water protection and a dual-scale pressure gauge for monitoring.

Key Advantages

• Microcomputer control with digital display for accurate temperature and time setting and clear monitoring.
• Full SUS304 stainless-steel chamber ensuring corrosion resistance for routine medical use.
• Automatic pressure release to protect against over-pressure.
• Low-water protection to prevent dry heating.
• Dual-scale pressure gauge for reliable pressure reading.
• Compact 18 L footprint for space-efficient, on-site or small-batch sterilization.

Applications

• Moist-heat sterilization of surgical instruments, laboratory glassware, culture media, dressings and biomedical waste.
• Suitable for hospitals, diagnostic laboratories, research institutes, dental clinics, pharmaceutical QC labs, food testing facilities, academic laboratories and field or small-batch sterilization environments where controlled steam sterilization is required.

Technical specifications

• Working Temperature: 126°C
• Volume: 18 L
• Power: 2.0 kW
• Voltage: 220 V / 50 Hz
• Chamber Size: 280 × 295 mm
• Rated Working Pressure: 0.142 MPa
• Packing Size (L × W × H): 410 × 410 × 560 mm
• Material: Full SUS304 stainless steel
• Control System: Microcomputer control, digital display
• Temperature & Time Setting: Fully adjustable
• Operation Type: Advanced, digital, adjustable
• Gross Weight: 18 kg
• Net Weight: 17 kg
