Medical sterilizer PTA-03

hospitalfor healthcare facilitieslaboratory

Product overview

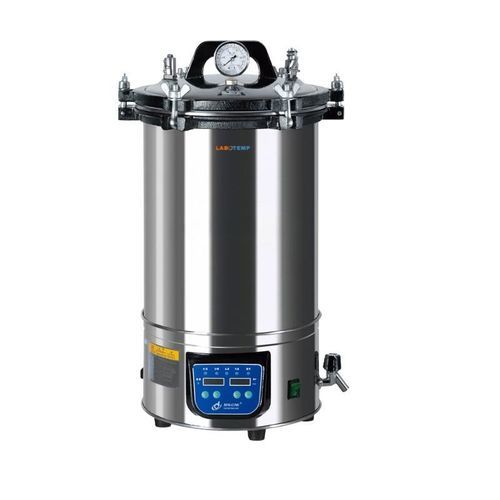

Labotemp Portable Autoclave PTA-03 is a compact steam sterilizer for medical and laboratory use. Constructed in full SUS304 stainless steel, it provides a 24 L chamber with 2.0 kW electric heating to generate rapid, uniform saturated steam. The microcomputer controller with digital display enables precise setting of sterilization temperature and time and monitors pressure for repeatable cycles. Safety features include automatic pressure release, low-water protection and a double-scale pressure gauge for clear reading.

Key benefits

• Precise process control via microcomputer digital controller.
• Durable full SUS304 stainless steel chamber and casing.
• Safety protections: auto-pressure release, low-water cut-off and visible pressure indication.

Features

• Full SUS304 stainless steel construction.
• 24 L chamber capacity with chamber dimensions 280 × 390 mm.
• 2.0 kW electric heater for efficient steam generation.
• Automatic over-pressure release and low-water protection to prevent dry firing.
• Double-scale pressure gauge for clear monitoring of pressure ranges.
• Intuitive, safe and reliable operation suitable for routine clinical use.

Applications

• Moist-heat sterilization of surgical instruments, dental tools and laboratory glassware.
• Sterilization of culture media, dressings and biomedical waste.
• Suitable for hospitals, clinics, diagnostic and research laboratories, pharmaceutical QC and field or small-batch sterilization tasks.

Technical specifications

• Working temperature: 126°C
• Volume: 24 L
• Power: 2.0 kW
• Voltage: 220V/50Hz
• Chamber size: 280 × 390 mm
• Rated working pressure: 0.142 MPa
• Packing size (L×W×H): 410 × 410 × 680 mm
• Material: Full SUS304 stainless steel
• Control system: Microcomputer control with digital display
• Temperature & time setting: Fully adjustable
• Operation type: Digital, adjustable
• Gross weight: 19 kg
• Net weight: 17.5 kg
