Medical sterilizer PTA-04

dentallaboratoryveterinary

Overview

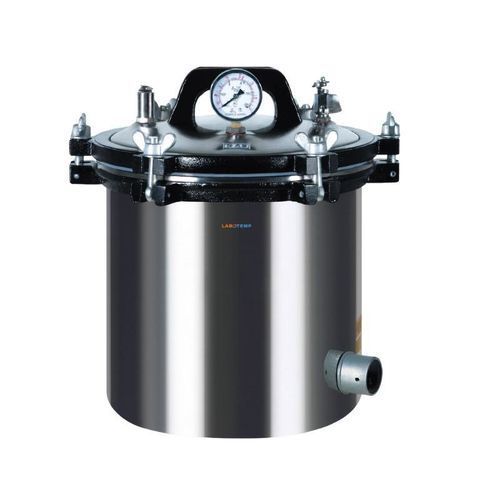

Labotemp Portable Autoclave PTA-04 is an 18 L steam sterilizer designed for medical and laboratory environments. The chamber and housing are made of SUS304 stainless steel. The unit supports dual-mode heating (electric and gas), rated power 2.0 kW, voltage 110/220 V 50/60 Hz, rated working pressure 0.142 MPa and rated temperature 126°C. Microcomputer control with digital display allows precise setting of sterilization temperature and time. Safety systems include automatic over-pressure release, low-water protection to prevent dry heating, a safety lid lock and a clear double-scale pressure gauge for accurate monitoring. The product is manufactured in accordance with ISO and CE standards.

Why choose Labotemp Portable Autoclave PTA-04?

• Dual-mode heating: electric and gas options for reliable operation in sites with unstable power supply.
• Safety-oriented design: automatic pressure release, low-water cut-off and safety lid lock for secure sterilization cycles.
• Compact portability: 18 L chamber and benchtop form factor suitable for clinics, dental and veterinary practices, research labs and field use.

Features

• Secure lid locking mechanism during operation to prevent accidental opening.
• Microcomputer control with digital display for precise temperature and time programming.
• Compact, portable construction with SUS304 stainless steel chamber for hygiene and corrosion resistance.
• Electric and gas dual-heating compatibility for use where power is unstable or field deployment is required.
• Clear double-scale pressure gauge for accurate pressure monitoring and cycle verification.

Applications

• Moist heat sterilization of surgical instruments, laboratory glassware, culture media, dressings and biomedical waste in microbiology labs, clinics, dental and veterinary practices, research centres, pharmaceutical QC labs, food testing facilities, academic laboratories and small-batch or field sterilization environments requiring controlled pressure steam disinfection.

Technical specifications

• Working Temperature: 126°C
• Volume: 18 L
• Rated Working Pressure: 0.142 MPa
• Chamber Size: 280 × 295 mm
• Heating Mode: Electric + Gas
• Material: Stainless steel (SUS304)
• Pressure Gauge: Double-scale indication
• Power: 2.0 kW
• Voltage: 110/220 V 50/60 Hz
• Packing Size (L × W × H): 410 × 410 × 560 mm
• Gross Weight: 15.5 kg
• Net Weight: 14.5 kg
