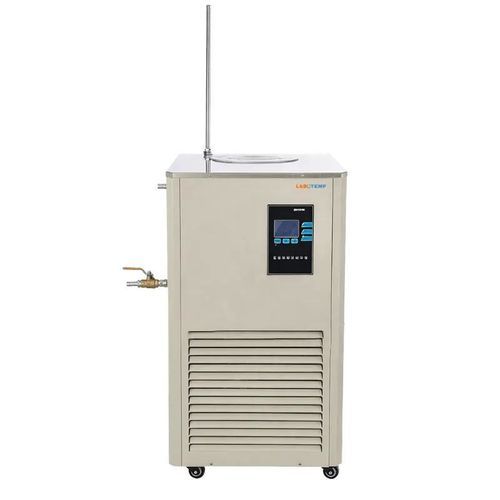

Mobile laboratory chiller LAC-205

on castersmodularrecirculating

Overview
Labotemp Air Cooled Chiller LAC-205 is a cooling system designed for laboratories requiring stable and continuous temperature control. With a 30 L capacity and a temperature range down to -30°C, this closed-loop water chiller supports applications such as rotary evaporation, chemical processing, vacuum systems and analytical instrumentation, providing uniform recirculation to protect samples and maintain reaction conditions.

Design & Operation
Engineered for reliable laboratory operation, the unit integrates a high-performance air-cooled compressor and a microcomputer-based control for accurate temperature regulation. A digital display provides clear monitoring and adjustable circulation flow adapts to various setups. Built-in protections include overload and system safeguards to ensure stable, continuous operation suitable for research and industrial lab environments.

Key Benefits

• Consistent cooling performance: capable down to -30°C
• Energy-efficient operation suitable for continuous use
• Manufacturer: Labotemp

Features

• Microcomputer-based precise temperature control
• Corrosion-resistant internal tank compatible with common cooling fluids
• Low-vibration design for stable operation in sensitive environments
• Integrated caster wheels with locking mechanism for mobility and stability
• Modular construction for simplified maintenance and component access
• High-efficiency condenser for improved heat exchange
• Continuous operation capability for extended experimental cycles
• Intelligent fault alarm system for real-time status monitoring

Applications

• Low-temperature recirculation for jacketed reactors, condensers and vacuum systems
• Controlled cooling for chemical synthesis, sample handling and process stabilization
• Suitable for pharmaceutical labs, academic research and pilot-scale production requiring stable cooling and continuous operation

Specifications (table)
Model : LAC-205
Volume : 30L
Temperature Range : -30°C to RT
Voltage : 220V 50Hz
Pressure : ≤0.4 MPa
Flow : 20 L/min
Lifting Head : 4–6 m
Dimension (mm) : 600 × 500 × 950 mm

Technical specifications

• Model: LAC-205
• Volume: 30L
• Temperature range: -30°C to RT
• Voltage: 220V 50Hz
• Pressure: ≤0.4 MPa
• Flow rate: 20 L/min
• Lifting head: 4–6 m
• Dimensions (mm): 600 × 500 × 950 mm
