Mobile laboratory chiller LAC-207

on castersmodularcirculating

Product overview

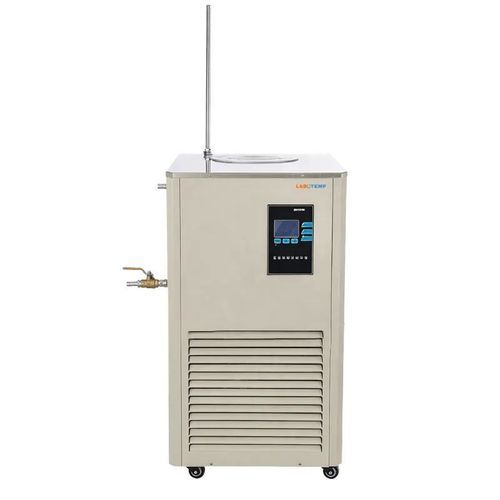

Labotemp Air-cooled Recirculating Chiller LAC-207 is engineered for laboratories and industrial R&D that require stable ultra-low temperatures. The unit features a 30 L reservoir and a temperature range down to -80°C, providing closed-loop circulation for jacketed reactors, condensers and vacuum systems. Air-cooled compression combined with intelligent temperature control ensures precise setpoint maintenance and long-term stability.

Design and operation
The LAC-207 integrates an air-cooled compressor, high-efficiency condenser and a corrosion-resistant internal tank for reliable continuous operation. Intelligent control regulates temperature and circulation while built-in protection systems monitor overloads and system faults. Modular construction and integrated caster wheels simplify installation, repositioning and maintenance in laboratory environments.

Why choose LAC-207

• Ultra-low capability to -80°C for low-temperature processes
• Stable closed-loop circulation for consistent thermal control
• Manufacturer: Labotemp

Features

• Low-noise operation suitable for laboratory settings
• Corrosion-resistant internal tank compatible with common heat transfer fluids
• Low-vibration design for sensitive installations
• Integrated caster wheels with locks for mobility and stability
• Modular layout for simplified servicing and component access
• High-efficiency condenser to improve heat exchange and reduce energy loss
• Continuous operation capability for extended experimental cycles
• Intelligent fault alarm and real-time system monitoring

Applications

• Provides stable low-temperature recirculation for jacketed reactors, condensers and vacuum systems
• Maintains controlled conditions for chemical synthesis, sample cooling and process stabilization
• Suitable for pharmaceutical labs, academic research and pilot-scale production

Technical specifications

• Model: LAC-207
• Volume: 30 L
• Temperature range: -80 °C to RT
• Voltage: 220 V 50 Hz
• Pressure: ≤0.4 MPa
• Flow: 20 L/min
• Lifting head: 4–6 m
• Dimensions (mm): 850 × 650 × 1000 mm
