Air-cooled laboratory chiller LAC-208

on casterscirculatingrecirculating

Overview

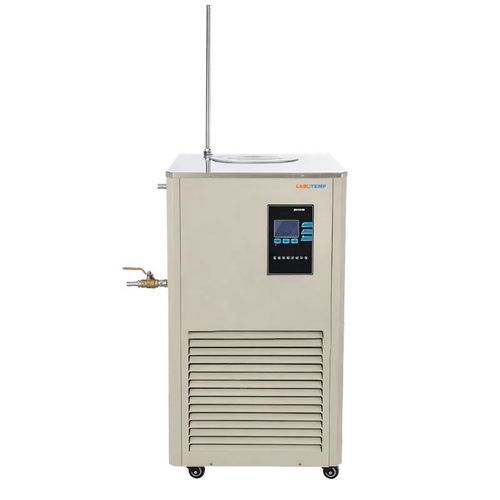

Labotemp Air Cooled Chiller LAC-208 is built for laboratories that require reliable deep cooling and consistent performance in demanding conditions. With a 30L capacity and temperature capability down to -120°C, this advanced water chiller supports critical applications such as chemical reactions, low-temperature synthesis, vacuum systems, and analytical processes where thermal stability is essential. Its closed-loop circulation maintains uniform cooling, ensuring process accuracy and protecting temperature-sensitive samples.

Design & operation
Designed with a focus on efficiency and durability, this high-performance air chiller integrates a quality air-cooled compressor with intelligent temperature control for precise regulation and easy operation. The system adapts well to varying laboratory environments, offering stable cooling even during long operational cycles. Safety features including overload protection, system monitoring, and controlled circulation enhance operational reliability. With optimized energy consumption and a robust build, the LAC-208 is a dependable solution for advanced laboratory cooling requirements.

Why choose Labotemp Air Cooled Chiller LAC-208?

• Ultra-low cooling range: supports applications down to -120°C
• Consistent thermal stability: uniform cooling for precise workflows
• Energy-efficient design: optimized for long-term operation

Features

• Wide temperature range
• Corrosion-resistant internal tank suitable for long-term use with various cooling fluids
• Low-vibration design for stable operation in sensitive laboratory environments
• Integrated caster wheels with locking mechanism for easy positioning and stability
• Modular construction for simplified servicing and component access
• High-efficiency condenser for improved heat exchange and reduced energy loss
• Continuous operation capability for extended experimental cycles
• Intelligent fault alarm system for real-time system status monitoring

Applications

• Provides stable low-temperature recirculation for jacketed reactors, condensers, and vacuum systems
• Suitable for maintaining controlled conditions in chemical synthesis, sample cooling, and process stabilization
• Applicable in pharmaceutical labs, academic research, and pilot-scale production where consistent cooling, flow rate, and continuous operation are critical

Specifications

• Model: LAC-208
• Volume: 30 L
• Temperature range: -120°C to RT
• Max pressure: ≤0.4 MPa
• Flow rate: 20 L/min
• Lifting head: 4–6 m
• Voltage: 220V 50Hz
• Dimensions (mm): 1150 × 850 × 1100
