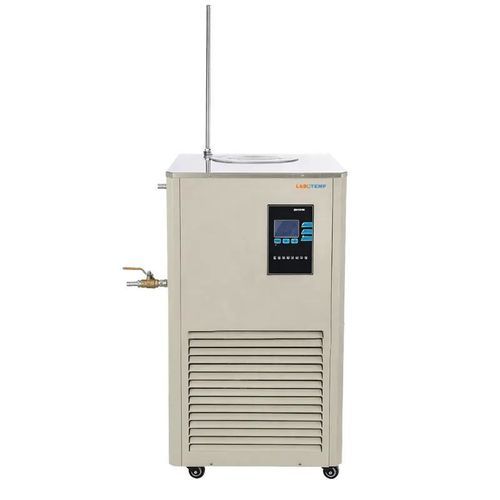

Air-cooled laboratory chiller LAC-206

on casterscirculatingrecirculating

Product Overview
Labotemp Air-cooled Laboratory Chiller LAC-206 provides deep, stable cooling for laboratories and pilot facilities. With a 30 L reservoir and cooling capability down to −60°C, the unit supports closed-loop recirculation for processes requiring precise thermal control and sample protection over extended runs.

Performance and Construction
Designed for reliable, energy-conscious operation, the LAC-206 integrates an air-cooled compressor and microprocessor control for accurate temperature regulation. A digital interface enables monitoring and adjustments while adjustable flow adapts to a wide range of lab equipment. Built-in protection functions prevent overload and faults, and a rugged, service-friendly construction improves uptime.

Key Benefits

• Deep cooling: reliable operation down to −60°C
• 30 L reservoir: suited to extended laboratory recirculation and processes
• Stable thermal control: precise and uniform temperature management for sensitive applications

Features

• Continuous closed-loop circulation
• Corrosion-resistant internal tank compatible with various heat-transfer fluids
• Low-vibration design for stable operation in sensitive environments
• Integrated caster wheels with locking mechanism for mobility and positioning
• Modular construction for simplified maintenance and component access
• High-efficiency condenser for improved heat exchange and reduced energy loss
• Capability for continuous operation during extended experimental cycles
• Intelligent fault alarm system for real-time status monitoring

Applications

• Low-temperature recirculation for jacketed reactors, condensers and vacuum systems
• Controlled cooling in chemical synthesis, sample conditioning and process stabilization
• Pharmaceutical laboratories, academic research and pilot-scale production requiring continuous, consistent cooling and flow

Technical Specifications

• Model: LAC-206
• Volume: 30 L
• Temperature Range: −60°C to room temperature
• Voltage: 220 V 50 Hz
• Pressure: ≤ 0.4 MPa
• Flow: 20 L/min
• Lifting Head: 4–6 m
• Dimensions (mm): 850 × 650 × 1000 mm
