Medical sterilizer BTA-01

dentallaboratorymicrobiology

Product overview

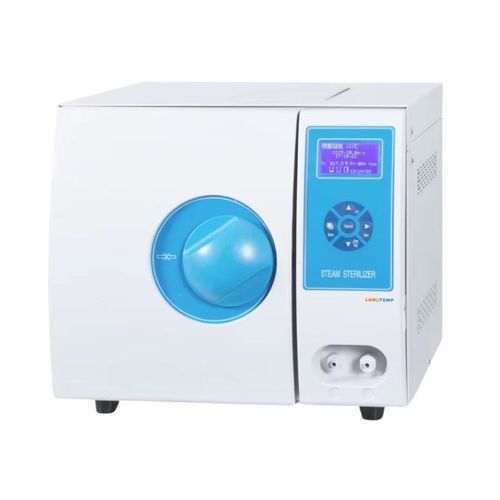

Labotemp Benchtop Autoclave BTA-01 is a compact Class N steam sterilizer with an 8 L stainless steel chamber, integrated steam generator and microcomputer control. It delivers saturated steam at selectable temperatures of 121°C and 134°C to inactivate bacteria, viruses and spores. Its sealed chamber and Class N compliance make it suitable for dental clinics, small medical units, laboratories and healthcare facilities requiring reliable tabletop sterilization.

Safety and operation
Designed for safe, repeatable operation, the BTA-01 provides automatic sterilization cycles, rapid steam generation and multiple safety protections including over-temperature, over-pressure and low-water-level protection. The unit includes a safety interlock door, automatic steam exhaust, audible end-of-cycle signal and intuitive button controls for routine clinical and laboratory use.

Key benefits

• Class N sterilization standard for medical, dental and laboratory instruments.
• Integrated safety protections with automatic monitoring and door interlock.
• ISO & CE compliant design for international safety and quality requirements.

Features

• Compact 8 L stainless steel chamber.
• Microcomputer-controlled sterilization for accurate, repeatable cycles.
• Selectable sterilization temperatures: 121°C and 134°C.
• Built-in rapid steam generator for efficient cycle times.
• Automatic sterilization cycle with user-friendly touch/button controls.
• Safety interlocking door mechanism.
• Over-temperature and over-pressure protection systems.
• Low-water-level and anti-dry-burning protection.
• Automatic cold air intake and automatic steam exhaust after cycle.
• Audible buzzer and automatic stop at cycle completion.
• Standard test interface for routine validation.
• Designed to meet European Class N requirements.

Applications

• Dental clinics
  Sterilization of dental instruments and reusable dental devices.
• Medical & healthcare facilities
  Routine sterilization of compatible medical and minor surgical instruments.
• Clinical & diagnostic laboratories
  Sterilization of laboratory tools, small instruments and suitable glassware.
• Research laboratories
  Routine sterilization needs in academic and research environments.
• Microbiology laboratories
  Sterilization of equipment and materials compatible with saturated steam sterilization.
• Hospitals & clinics
  Compact tabletop sterilization where Class N processes are applicable.

Specifications / Technical data

• Model: BTA-01
• Capacity: 8 L
• Chamber Volume: Φ170 × 320 mm
• Rated Working Temperature: 134°C (adjustable to 121°C)
• Rated Working Pressure: 0.22 MPa
• Design Temperature: 139°C
• Design Pressure: 0.25 MPa
• Voltage: 220V / 110V, 50/60 Hz
• Power: 2 kW
• Outer Dimension: 455 × 580 × 400 mm
• Packing Size (L × W × H): 650 × 500 × 450 mm
• Net Weight: 42 kg
• Gross Weight: 45 kg
