Dental sterilizer BTA-03

laboratorymedical practicemicrobiology

Product overview

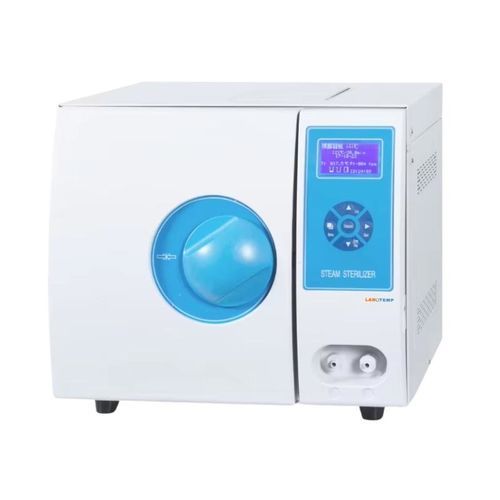

Labotemp benchtop autoclave BTA-03 is an ISO and CE certified Class N steam sterilizer with an 18 L stainless steel chamber and built-in steam generator. It supports standard saturated steam cycles at 121°C and 134°C and is designed for tabletop installation in clinics, dental practices and medical or research laboratories where compact automated sterilization is required.

Features

• 18 L stainless steel chamber (Φ250 × 370 mm) suitable for instruments, small trays and glassware
• Supports 121°C and 134°C sterilization cycles with rated working temperature 134°C
• Built-in rapid steam generator delivering saturated steam for uniform sterilization
• Microcomputer-controlled automatic cycles with touch-button operation for repeatable results
• Automatic cold air discharge and automatic steam exhaust to improve cycle efficiency
• Safety interlock to prevent door opening during operation
• Over-temperature and over-pressure protection
• Low water level alarm and anti-dry burn protection for heating system safety
• Audible end-of-cycle signal and automatic stop; standard test interface for routine validation
• Compact tabletop footprint (480 × 590 × 450 mm) for limited-space environments

Applications

• Dental clinics: sterilization of dental handpieces, mirrors and reusable instruments compatible with Class N cycles
• Hospitals and healthcare facilities: routine sterilization of suitable medical and surgical instruments
• Clinical and diagnostic laboratories: sterilization of small lab tools, glassware and reusable devices
• Microbiology and research laboratories: routine sterilization of appropriate materials and media
• Medical and dental practices requiring a compact 18 L Class N benchtop autoclave with automated control

Technical specifications

• Model: BTA-03
• Capacity: 18 L (Φ250 × 370 mm)
• Sterilization temperatures: 121°C and 134°C (rated working temperature 134°C; design temperature 139°C)
• Rated working pressure: 0.22 MPa; design pressure: 0.25 MPa
• Steam source: built-in steam generator (saturated steam)
• Control: microcomputer-controlled automatic cycles with touch-button operation
• Power: 2 kW; Voltage: 220V / 110V, 50/60 Hz
• Outer dimensions: 480 × 590 × 450 mm; Packing size: 720 × 560 × 510 mm
• Net weight: 48 kg; Gross weight: 57 kg
