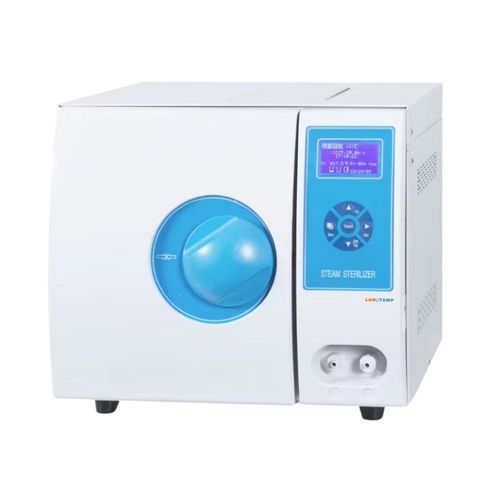

Medical sterilizer BTA-04

surgicallaboratorymicrobiology

Product Overview
Labotemp Benchtop Autoclave BTA-04 is a Class N benchtop autoclave for routine sterilization of medical instruments, surgical tools and laboratory equipment. The unit delivers saturated steam at 121°C and 134°C from a built-in steam generator into a 23 L stainless-steel chamber for fast, uniform sterilization suitable for hospitals, clinics and laboratories.

Operation
Microcomputer-controlled automatic cycles with a touch-button interface for straightforward operation. Automatic air discharge and post-cycle steam exhaust improve efficiency and drying. Safety interlock and multiple protection systems (over-temperature, over-pressure, low-water-level) support safe use. Standard test interface enables process monitoring and validation.

Features

• Safety door lock with interlock mechanism
• Saturated steam sterilization selectable at 121°C and 134°C
• Microprocessor-controlled automatic sterilization cycles
• Built-in steam generator for rapid steam production
• Class N system for routine medical and laboratory use
• Automatic cold-air discharge and post-cycle steam exhaust
• Over-temperature, over-pressure and low-water-level protection
• Touch-button control panel with clear indicators
• Sealed 23 L stainless-steel chamber (Φ250 × 452 mm)
• Standard test interface and audible end-of-cycle alarm

Applications

• Hospitals and healthcare facilities — routine sterilization of appropriate surgical and medical instruments
• Dental clinics — sterilization of compatible dental instruments and reusable devices
• Clinical and diagnostic laboratories — sterilization of glassware and small lab tools
• Microbiology laboratories — routine sterilization of suitable materials
• Research and academic laboratories — compact steam sterilization for workflows

Technical specifications

• Brand: Labotemp
• Model: BTA-04
• Capacity: 23 L
• Chamber volume: Φ250 × 452 mm
• Rated working temperature: 134°C (also supports 121°C)
• Rated working pressure: 0.22 MPa
• Design temperature: 139°C
• Design pressure: 0.25 MPa
• Voltage: 220V / 110V, 50/60 Hz
• Power: 2 kW
• Outer dimensions (L × W × H): 480 × 690 × 450 mm
• Packing size (L × W × H): 760 × 560 × 510 mm
• Net weight: 53 kg
• Gross weight: 60 kg
