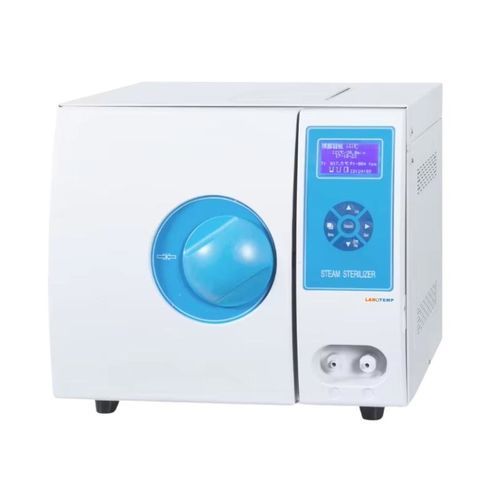

Hospital autoclave BTA-02

laboratorydentalfor research

Product Overview Labotemp Benchtop Autoclave BTA-02 is a compact Class N medical benchtop autoclave designed for reliable sterilization of medical instruments, dental tools and laboratory equipment. It operates with saturated steam at 121°C and 134°C to eliminate bacteria, viruses and spores. The unit features a stainless steel chamber, sealed design and a built-in rapid steam generator for fast, uniform sterilization suitable for clinics, dental practices and laboratories.

Operation and Control Microcomputer-controlled automatic cycles with touch button operation and built-in printer support for sterilization record tracking. Automatic air discharge and steam exhaust enhance sterilization efficiency. The device includes a safety interlock and multiple protection systems for secure operation.

Why choose BTA-02

• Class N standard suitable for instrument sterilization.
• Microprocessor control with automatic cycles and printer support for traceable records.
• Multiple safety protections: over-temperature, over-pressure, low water level and anti-dry burning protection.

Features

• Class N standard
• Microcomputer-controlled sterilization system
• Adjustable sterilization temperatures: 121°C and 134°C
• Built-in rapid steam generation system
• User-friendly touch button control with automatic cycles
• Safety interlocking door mechanism
• Over-temperature and over-pressure protection
• Low water level and anti-dry burning protection
• Automatic cold air discharge and automatic steam exhaust after sterilization
• Audible buzzer indication with automatic stop after cycle completion
• Standard test interface for routine testing and validation

Applications

• Sterilization of dental instruments and surgical tools
• Sterilization of laboratory glassware and reusable medical devices
• Suitable for clinics, hospitals, diagnostic laboratories, research centers and academic institutions
• Ideal for routine Class N sterilization processes requiring compact tabletop operation

Technical specifications

• Model: BTA-02
• Capacity: 12 L
• Rated working temperature: 134°C (adjustable to 121°C / 134°C)
• Voltage: 220V / 110V, 50Hz/60Hz
• Power: 2 kW
• Rated working pressure: 0.22 MPa
• Design temperature: 139°C
• Design pressure: 0.25 MPa
• Chamber volume: Φ200 × 355 mm
• Outer dimensions: 455 × 580 × 400 mm
• Packing size (L × W × H): 650 × 500 × 450 mm
• Net weight: 44 kg
• Gross weight: 48 kg
