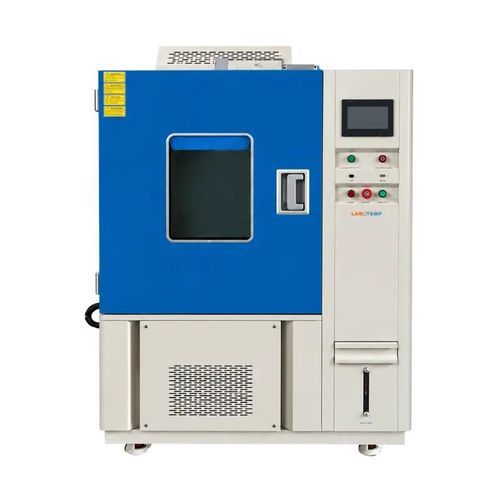

Thermostatic test chamber LOC-101

climatichumiditytemperature

Product Overview
Labotemp Ozone Test Chamber LOC-101 is a precision-engineered system for controlled ozone exposure testing of rubber, elastomer and polymer specimens. The chamber supports accelerated ozone aging by exposing samples to regulated ozone concentrations, controlled temperature (0–100°C) and adjustable humidity. With a 250 L internal volume and combined static/dynamic sample holders providing 360° uniform exposure, the LOC-101 is suited to laboratory evaluations for automotive, cable, sealing and elastomer applications.

Design and Operation
The LOC-101 integrates a programmable color touch-screen controller, high-accuracy PTR platinum temperature sensor (PT100Ω, A-class), mechanical compression refrigeration and a silent-discharge ozone generator. Ozone concentration control ranges 1–1000 PPHM with stable airflow distribution. An active exhaust system removes residual ozone for operator and environmental safety. The unit provides Ethernet PC link for data communication and modular access for maintenance.

Why Choose LOC-101

• Accurate ozone control: stable concentration for repeatable test results
• Uniform exposure: 360° rotating/sample holder arrangement for consistent specimen conditioning
• Safety features: active exhaust and gas sensing to limit residual ozone

Key Features

• Capacity: 250 L
• Temperature range: 0–100 °C with ±0.5 °C fluctuation
• Ozone concentration control: 1–1000 PPHM
• Humidity control: 30–98 % RH (±2.5 % RH)
• Combined static and dynamic sample holders; rotation 0–10 r/min
• Airflow rate adjustable 0–60 L/min
• Clamps tensile stretch control: 5–35 %
• Mechanical compression refrigeration system
• Programmable color LCD touch-screen controller; Ethernet/PC link
• PTR platinum resistance temperature sensor (PT100Ω, A-class)
• Silent-discharge ozone generator and ozone gas sensor
• Interior: SUS304 stainless steel; Exterior: coated steel plate
• Compact footprint for laboratory environments

Applications

• Accelerated ozone aging and durability evaluation of rubber, elastomers and polymers
• Automotive component testing
• Cable and wire insulation assessment
• Seal and gasket validation
• Tire and rubber product quality control
• Material R&D and academic research
• Industrial compliance and lifespan studies

Specifications

• Capacity: 250 L
• Temperature Range: 0 °C to +100 °C
• Power Supply: 220 V 50/60 Hz
• Temperature Fluctuation: ±0.5 °C
• Temperature Deviation: ±2.0 °C
• Humidity Range: 30 % – 98 % RH (±2.5 % RH)
• Cooling Rate: Ambient to 0 °C within 20 min
• Ozone Concentration: 1 – 1000 PPHM
• Sample Holder Rotate Speed: 0 – 10 r/min
• Airflow Rate: 0 – 60 L/min
• Clamps Tensile Stretch: 5 % – 35 %
• Cooling System: Mechanical compression refrigeration
• Controller: Programmable color LCD touch-screen; Communication: Ethernet / PC Link
• Temperature Sensor: PTR Platinum Resistance PT100Ω (A-class)
• Gas Sensor: Ozone gas sensor
• Ozone Generator: Silent-discharge type
• Sample Holder: Combined static + dynamic
• Interior Material: SUS304 stainless steel; Exterior Material: Steel plate with protective coating
• Internal Dimension: 600 × 600 × 700 mm; Overall Dimension: 960 × 1150 × 1860 mm
