Climate chamber LOC-105

humiditytemperatureozone

Product Overview

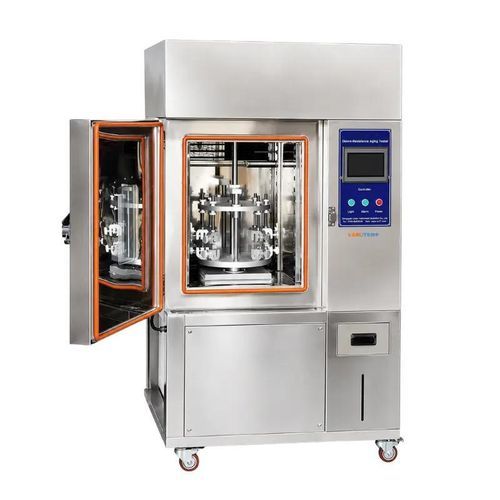

Labotemp Ozone Resistance Aging Test Chamber LOC-105 is a precision-engineered ozone test chamber designed for accelerated ozone testing of rubber, elastomers, and polymer materials under controlled environmental conditions. Featuring a 150 L stainless steel chamber, adjustable ozone concentration from 0 to 1500 PPHM, and a temperature range of RT+10°C to 80°C, it accurately simulates ozone-induced aging to evaluate surface cracking, degradation, and material durability.

Performance & Design Highlights
Built for dependable laboratory performance, the LOC-105 combines an integrated ozone generator with a high-precision ozone sensor to maintain stable ozone concentration throughout each testing cycle. Its mirror-finish SUS304 stainless steel interior, forced air circulation, and energy-efficient heating system provide excellent temperature uniformity and long-term reliability. Safety is enhanced through an automatic ozone decomposition and exhaust system, airtight chamber construction, and door interlock protection that minimizes operator exposure during testing.

Key Features

• Accurate ozone control: Adjustable 0–1500 PPHM concentration for reliable and repeatable ozone aging tests.
• Stable temperature performance: RT+10°C to 80°C operating range with ±0.5°C fluctuation for dependable environmental control.
• Advanced safety design: Integrated ozone decomposition and exhaust system, airtight chamber, door interlock and ambient ozone leak sensor for enhanced operator protection.
• 360° rotating sample holder and combined dynamic/static test fixtures for uniform specimen exposure.
• PID touch-screen control interface with PT100 temperature sensing and PID+SSR control mode for precise regulation.

Applications

• Accelerated ozone aging evaluation of rubber, elastomers, seals, gaskets, hoses, cables, and polymer components.
• Material R&D, quality control, product validation and standards-based durability testing for automotive, wire & cable, aerospace, industrial manufacturing, research laboratories, universities, and inspection laboratories.

caractéristiques / spécifications techniques

• Chamber Volume: 150 L (stainless steel)
• Temperature Range: RT +10°C to +80°C
• Temperature Fluctuation: ±0.5°C
• Temperature Deviation: ±2.0°C
• Temperature Resolution: 0.1°C
• Relative Humidity: ≤65% RH
• Humidity Resolution: 0.1% RH
• Humidity Deviation: +2% / -3% RH
• Ozone Concentration Range: 0–1500 pphm (Adjustable)
• Ozone Concentration Deviation: ≤10%
• Inside Air Velocity: >2 ft/sec
• Air Flow: A: 0–6 cfm; B: 10–20 cfm
• Turntable Type: 360° Rotating Sample Holder
• Turntable Speed: 1 rpm
• Dynamic Strain Test: 6 Positions
• Dynamic Test Frequency: 1–30 cycles/min
• Stroke Length: 0–80 mm
• Dynamic Rotation Speed: 6 rpm
• Static Strain Test: 6 Specimen Positions
• Inner Chamber Dimensions (W × H × D): 500 × 600 × 500 mm
• Outer Dimensions (W × H × D): 1150 × 1500 × 750 mm
• Chamber Material: Ozone-resistant mirror-finish stainless steel
• Insulation Material: High-density glass fiber
• Door Seal: Double-layer high & low temperature resistant silicone seal
• Observation Window: Multi-layer hollow tempered glass
• Sample Holder: Built-in 360° rotating sample holder
• Exhaust System: High-concentration ozone exhaust system
• Controller: Imported microcomputer LCD controller
• Control Mode: PID + SSR control
• Temperature Sensor: PT100 (SUS304)
• Touch Screen: PID control interface
• Heating System: Nickel-chromium alloy U-shaped fin heater
• Power Consumption: 3–5 kW
• Power Supply: AC 110V / 220V, 50/60Hz
• Net Weight: 280 kg
• Gross Weight: 350 kg
• Package Size: 1120 × 1190 × 1990 mm
