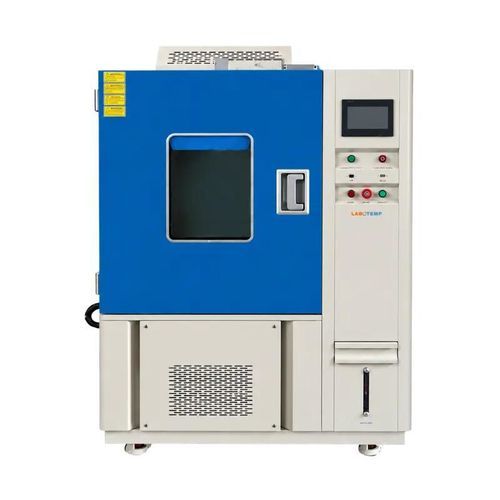

Ozone test chamber LOC-102

thermostaticclimatichumidity

Overview
Labotemp Ozone Test Chamber LOC-102 is a 500 L system engineered for controlled ozone exposure testing of rubber, elastomer and polymer specimens. It delivers precise environmental control — temperature up to +100°C, humidity 30%–98% RH and adjustable ozone concentration from 1 to 1000 PPHM — with an airflow range up to 60 L/min. Combined static and rotating sample holders ensure uniform 360° exposure for reproducible accelerated aging and durability evaluation.

Control & Safety
The chamber is equipped with a programmable color LCD touch controller supporting Ethernet/PC Link for remote monitoring and data logging. Temperature is measured with a PTR PT100 platinum resistance sensor (A-class) for high accuracy. A mechanical compression refrigeration system provides stable cooling. A silent-discharge ozone generator supplies controlled ozone output; exhaust with activated carbon filtration and safety interlocks protect operators during and after test cycles.

Key advantages

• High-capacity 500 L chamber for increased sample throughput
• Accurate environmental regulation: precise temperature, humidity and ozone control
• Uniform 360° exposure using combined static and dynamic sample holders
• Adjustable airflow up to 60 L/min and sample rotation 0–10 r/min
• Modular access design for maintenance and built-in safety features
• Compact footprint suitable for laboratory and industrial quality-control environments

Features

• 360° exposure testing for consistent specimen irradiation
• Silent-discharge ozone generator with ozone gas sensor
• External stainless-steel evaporative humidifier and PTR PT100 sensor
• Programmable color LCD touch controller with Ethernet connectivity
• Mechanical compression refrigeration system for stable temperature control
• Low-noise operation and fast response environmental regulation
• Modular sample access and convenient serviceability

Applications

• Accelerated ozone aging and durability assessment of rubber, elastomers and polymers
• Automotive component testing: seals, gaskets, hoses and tyres quality control
• Cable and wire insulation evaluation
• Material R&D, product development and academic research
• Industrial compliance, lifetime and reliability studies

Technical specifications

• Capacity: 500 L
• Temperature range: 0°C ~ +100°C
• Power supply: 220V 50/60Hz
• Temperature deviation: ±2.0°C
• Temperature fluctuation: ±0.5°C
• Humidity range: 30% ~ 98% RH
• Humidity deviation: ±2.5% RH
• Cooling rate: Ambient ~ 0℃ within 20 min
• Ozone concentration: 1 ~ 1000 PPHM
• Sample holder rotate speed: 0 ~ 10 r/min
• Airflow rate: 0 ~ 60 L/min
• Clamps tensile stretch: 5% ~ 35%
• Cooling system: Mechanical compression refrigeration system
• Controller: Programmable color LCD touch screen controller
• Communication: Ethernet connection, PC Link
• Humidifier: External isolation, stainless steel surface evaporation humidifier
• Temperature sensor: PTR Platinum Resistance PT100Ω / A-class
• Gas sensor: Ozone gas sensor
• Ozone generator: Silent discharge type ozone generator
• Sample holder: Static + dynamic combined sample holder
• Exterior material: Steel plate with protective coating
• Interior material: SUS304 stainless steel
• Temperature fluctuation: ±0.5°C
• Internal dimension: 700 × 800 × 900 mm
• Overall dimension: 1200 × 1340 × 2020 mm
• Net weight: 476 kg
• Gross weight: 568 kg
• Package size: 1350 × 1500 × 2300 mm
