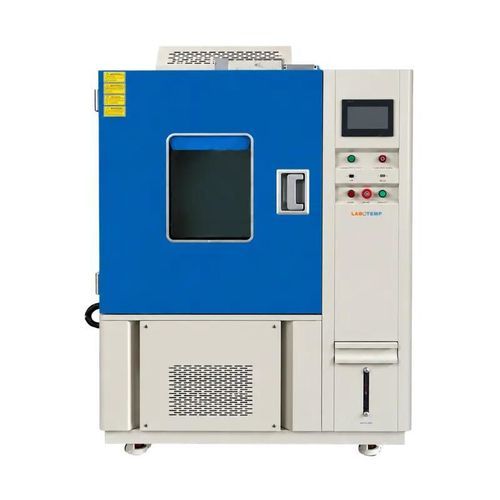

Thermostatic test chamber LOC-104

climatichumidityozone

Product Overview
Labotemp Ozone Test Chamber LOC-104 is a 1000L-capacity system engineered for accelerated ozone aging and durability testing of rubber, elastomer and polymer samples. The chamber accepts combined static and rotating sample holders to provide uniform 360° ozone exposure, enabling reproducible assessment of cracking, degradation and material performance for automotive, cable, seal and industrial applications.

Control and Safety
The LOC-104 features a programmable color LCD touch controller for precise regulation and monitoring of ozone concentration, temperature and humidity. Stable airflow management, a silent-discharge ozone generator and an integrated exhaust system remove residual ozone to protect operators. Robust sensors and safety interlocks ensure reliable, repeatable operation in laboratory and production environments.

Why choose Labotemp LOC-104?

• Large 1000L chamber suitable for full-size parts or multiple samples
• Uniform exposure with combined static + dynamic sample holders
• Designed for reproducible aging tests in R&D and quality control workflows

Features

• Corrosion‑resistant exterior with SUS304 stainless steel interior
• Durable industrial construction for continuous laboratory use
• Uniform specimen exposure to improve test consistency
• Low-noise operation suitable for laboratory environments
• Fast-response environmental regulation for stable test conditions
• Modular access for maintenance and serviceability
• Compact footprint to optimize laboratory space
• Built-in safety mechanisms for extended test cycles
• Suitable for quality control, product development and material validation

Applications

• Accelerated ozone aging and durability evaluation of rubber, elastomers and polymers
• Automotive components and seal testing
• Cable and wire insulation assessment
• Seal and gasket validation
• Tire and rubber product quality control
• Material R&D, academic research and industrial compliance testing

Technical specifications

• Capacity: 1000L
• Internal dimension: 1000 × 1000 × 1000 mm
• Overall dimension: 1500 × 1540 × 2140 mm
• Temperature range: 0°C ~ +100°C
• Temperature deviation: ±2.0°C
• Temperature fluctuation: ±0.5°C
• Humidity range: 30% ~ 98% RH
• Humidity deviation: ±2.5% RH
• Cooling rate: Ambient ~ 0℃ within 20 min
• Ozone concentration: 1 ~ 1000 PPHM
• Sample holder rotate speed: 0 ~ 10 r/min
• Airflow rate: 0 ~ 60 L/min
• Clamps tensile stretch: 5% ~ 35%
• Cooling system: Mechanical compression refrigeration system
• Power supply: 220V 50/60Hz
• Controller: Programmable color LCD touch screen
• Communication: Ethernet connection, PC Link
• Humidifier: External isolation, stainless steel surface evaporation humidifier
• Temperature sensor: PTR Platinum Resistance PT100Ω / MV A-class
• Gas sensor: Ozone gas sensor
• Ozone generator: Silent discharge type ozone generator
• Sample holder: Static + dynamic combined sample holder
• Exterior material: Steel plate with protective coating
• Interior material: SUS304 stainless steel
• Temperature fluctuation control: ±0.5°C
• Net weight: 650 kg
• Gross weight: 800 kg
• Package size: 1500 × 1540 × 2350 mm
