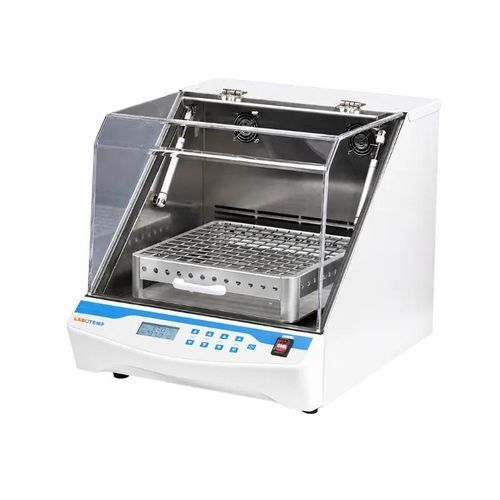

Shaking laboratory incubator LSI-101

forced convectionfor microbiologyfor cell cultures

Overview
Labotemp Shaking Incubator LSI-101 is a benchtop orbital shaking incubator for precise temperature-controlled incubation and uniform sample agitation in microbiology, biotechnology, pharmaceutical and clinical research laboratories. Key operating ranges include a 20 mm orbital diameter, adjustable speed from 50 to 250 rpm, and a temperature span from RT +5°C to 60°C with ±0.5°C stability and 0.1°C resolution.

Functional highlights

• Orbital shaking: 50–250 rpm with 20 mm orbit diameter
• Precise temperature control: RT +5°C to 60°C, ±0.5°C stability, 0.1°C resolution
• Forced-air convection for uniform chamber temperature
• Microcomputer controller with large HD LCD for clear monitoring of temperature, speed and time
• Transparent viewing lid with safety interlock (heating and shaking stop when lid opens)
• Compact benchtop design, energy-efficient and low-noise operation
• Suitable for flasks, beakers, Petri dishes and test tubes

Applications

• Temperature-controlled cultivation and agitation of bacterial, yeast and cell cultures
• Enzyme assays, fermentation experiments and media preparation
• Environmental sample incubation and routine quality control workflows requiring uniform mixing and stable temperature

Technical specifications

• Temperature range: RT +5°C to 60°C
• Platform size (W × D): 350 × 350 mm
• Power supply: AC 220/110 V, 50/60 Hz
• Power consumption: 600 W
• Circulation: Forced convection
• Shake mode: Convolution (orbital)
• Orbit diameter: Φ20 mm
• Speed range: 50–250 rpm
• Temperature fluctuation: ≤ ±0.5°C (37°C)
• Temperature uniformity: ≤ ±0.5°C (37°C)
• Temperature resolution: 0.1°C
• External dimensions (W × D × H): 632 × 502 × 512 mm
• Controller: Microcomputer
• Display: Large high-definition LCD
• Timer: 1 min – 99 h 59 min / Continuous
• Safety device: Heating and shaking stop automatically when lid is opened
• Gross weight: 58 kg
• Net weight: 41 kg
• Package size: 750 × 620 × 695 mm
