Microbiology laboratory incubator LSI-102

for the pharmaceutical industryeducationbenchtop

Product Overview

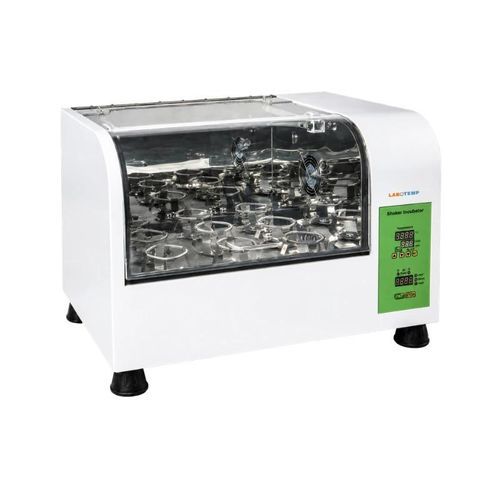

Labotemp Shaking Incubator LSI-102 is a benchtop orbital shaking incubator with an 18 L chamber, 20–300 rpm speed range and temperature control from RT+5°C to 60°C. The Φ26 mm orbital motion and ±1°C uniformity provide consistent mixing and thermal conditions for bacterial cultures, enzyme assays, fermentation tests and general laboratory incubation tasks. The unit is suited to microbiology, biotechnology, pharmaceutical, environmental and academic laboratories requiring stable incubation with controlled agitation.

Design & Operation
Designed as a compact benchtop unit, the LSI-102 integrates precise temperature control and orbital shaking in a space-saving enclosure. The large LCD offers clear monitoring of setpoints and status. A brushless DC motor ensures low-noise, low-maintenance operation. Built-in protections include door-open auto-stop, leakage protection, operation memory and automatic recovery after power interruption to protect ongoing runs and samples. The polished stainless steel chamber facilitates cleaning and long-term laboratory use.

Key Features

• Precise temperature control with ±0.1°C display resolution and ±1°C uniformity
• Brushless DC motor for stable, low-noise operation
• Power-failure recovery: automatic resume of programmed operation
• Operation memory and auto power recovery
• Corrosion-resistant stainless steel interior for easy cleaning
• Smooth orbital shaking (Φ26 mm) to minimize disturbance to sensitive cultures
• Reliable drive system for extended continuous runs
• Supports multiple flask and vessel configurations
• Compact benchtop design to save laboratory space
• Integrated safety features to protect samples and experiments

Applications

• Microbial culture growth and incubation
• Enzyme incubation and reaction studies
• Fermentation experiments and optimization
• Controlled sample agitation with temperature regulation
• Suitable for biotechnology, pharmaceutical, environmental, food testing, clinical research and academic labs

Caractéristiques / Spécifications techniques

• Temperature Range: RT +5°C to 60°C
• Tray Size: 295 × 253 mm
• Maximum Capacity: 50 ml × 12, 100 ml × 9
• Chamber Volume: 320 × 295 × 190 mm (18 L)
• Power Supply: AC 220 – 240 V, 50 – 60 Hz
• Shaking Speed: 20 – 300 rpm
• Speed Accuracy: ±1 rpm
• Swing Amplitude: Φ26 mm
• Standard Configuration: 100 ml × 9
• Timing Range: 1 – 9999 min
• Display Resolution: ±0.1°C
• Temperature Uniformity: ±1°C
• Display: LCD
• Tray Included: 1
• Power Rating: 220 W
• Exterior Size (W × D × H): 440 × 410 × 390 mm
• Net Weight: 31 kg
• Gross Weight: 41 kg
• Package Size (W × D × H): 580 × 530 × 540 mm
