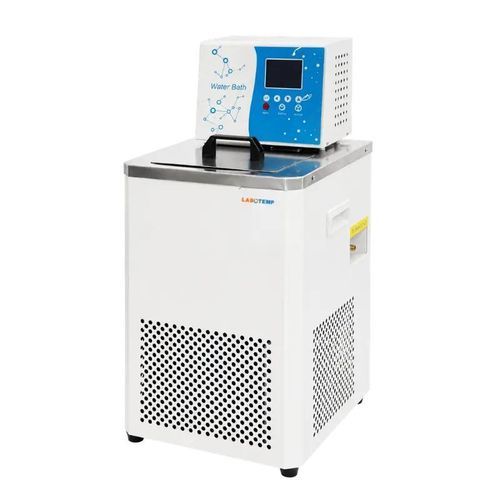

Circulating water bath LCB-101

for calibrationfor the pharmaceutical industryfor teaching

Overview
Labotemp refrigerated circulating bath LCB-101 provides precise temperature control for laboratory workflows requiring stable low-temperature conditions. The unit combines a 10 L stainless steel tank, high-resolution PID regulation and integrated refrigeration to support testing, calibration, sample preparation and research applications across pharmaceutical, biotechnology, chemical, environmental and academic laboratories.

Design and safety
Engineered for continuous operation, the LCB-101 features a corrosion-resistant stainless steel work tank, anti-corrosion outer shell and a high-efficiency compressor. A concealed cooling coil optimizes usable bath space and heat exchange. Safety features include over-temperature protection, power protection and a convenient drain valve for safe, low-maintenance operation.

Key benefits

• Precise PID temperature control for excellent stability and uniformity.
• Dual use as a laboratory water bath and as an external circulating temperature controller.
• Stainless steel construction for corrosion resistance and long service life.

Features

• 10 L stainless steel tank
• Temperature range: -5°C to 100°C
• High-resolution PID controller with PT100 sensor
• Fast cooling and heating response
• Integrated circulation pump (6 L/min) for uniform distribution
• Low-noise operation suitable for laboratory environments
• Efficient heat exchange and ventilation structure
• Drain valve and built-in compressor
• Over-temperature and power protection

Applications

• Precise temperature control for temperature-sensitive procedures: sample conditioning, reagent storage, calibration, analytical testing and thermal stability studies.
• External circulation to reactors, analytical instruments and process equipment in pharmaceutical, biotech, chemical, environmental and academic labs.

Technical specifications

• Tank Volume: 10 L
• Temperature Range: -5°C to 100°C
• Power Supply: 220V 50Hz
• Temperature Resolution: 0.01°C
• Temperature Stability: ±0.05°C
• Power: 1.3 kW
• Slot Opening: 180 × 160 mm
• Groove Depth: 200 mm
• Lift: 1.4 m
• Pump Flow: 6 L/min
• Temperature Control: PID Control (PT100)
• Drain Valve: Yes
• Built-in Compressor: Yes
• Construction Material: Stainless steel tank, anti-corrosion shell
• Dimensions (W×D×H): 320 × 370 × 765 mm
• Net Weight: 39 kg
• Gross Weight: 45 kg
• Package Size: 540 × 470 × 980 mm
